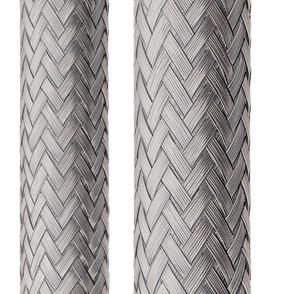

Braided sleeving HG-CU, rings made of tinned copper wires, round braid, coverage > 85% Material: tinned copper wire, other materials on request Temperature range: -50°C...+250°C Properties: axially compressible / easy pulling in of cables / can be stretched to make them tight / protection against hot chips / good shielding properties / shielding factor up to 30 MHz according to EN 50289-1-6 up to 80 dB Area of application: cable bundling / mechanical engineering / plant engineering / vehicle construction / rail vehicles / shipbuilding / automation / electrical systems / EMC applications
| Property | Value |
| Color: | metallic silver |
| Halogen-free: | yes |
| Fire protection according to UL 94: | other |
| Approval according to NF F 16-101: | no |
| Open (can be retrofitted): | no |
| Nominal diameter: | 35.0 mm |
| Bundle diameter: | 25 to 45.0 mm |
| Temperature: | -50 to +250 °C |
| Approval according to UR: | no |
| Approval according to DIN 5510: | no |
| Material: | copper |
| Material quality: | other |
| Surface: | tinned |
Features
HAB
HG-CU NW 35 25-45mm copper tinned
Minimal order
25 meters
Manufacturer
HAN
14050701055
GTIN
4025113140760
Color
Halogen free
Yes
Nominal diameter
35.0 mm
Surface
Tinned
Temperature
-50 to +250 °C
Material
Copper
Material quality
Other
