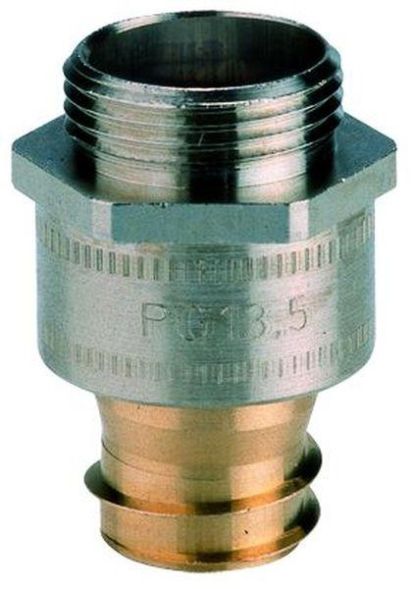

Metal screw connection straight LI-P, rotatable, IP 40 integrated inner sleeve, PG external thread, rotatable suitable for metal protection hoses SPR / SPR-AS / SPR-VA / FLEXAgraff-AS / FLEXAgraff-VA / SPR-PVC-AS / SPR-PA / SPR-PU-AS / SPR-PU-F / FLEXAgraff-PU-F Material: Housing nickel-plated brass / threaded sleeve bright brass / locking ring spring steel Temperature range: -40°C ... +250°C Properties: integrated hose unscrewing lock / cover of the hose ends / vibration and tensile resistant
| Property | Value |
| Protection class (IP) depending on hose: | 40 |
| Nominal diameter: | 14.0 mm |
| Largest outer diameter of the hose: | 14.0 mm |
| Smallest inner diameter of the hose: | 10.0 mm |
| Thread connection size: | PG9 |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Total length: | 30.0 mm |
| Total height: | 21.0 mm |
| Thread length: | 7.0 mm |
| Rotatable thread: | yes |
| Nominal size in inches: | 5/16 inch |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Approved in combination with protective hose UL: | no |
| Approved in combination with protective hose CSA: | no |
| Approved in combination with protective hose FI: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -40 to +250 °C |
| Thread type: | other |
| Connection type of screw connection to the housing: | thread |
| Number of entries: | 1 |
| With earth connection: | no |
Features
One-piece
No
Total height
21.0 mm
Connection type of screw connection to the housing
Thread
Smallest inner diameter of the hose
10.0 mm
Approved in combination with protective hose DIN EN 61386-23
Yes
Protection class (IP) depends on hose
40
With earth connection
No
Approved in combination with protective hose CSA
No
HAB
LI-P AD14 PG9 metal
Minimal order
50 pcs
Manufacturer
HAN
15010010009
GTIN
4025113143228
Version
Straight
Design
External thread
Rotating thread
Yes
Operating temperature
-40 to +250 °C
Overall length
30.0 mm
Thread connection size
PG9
Thread type
Other
Thread length
7.0 mm
Nominal diameter
14.0 mm
Nominal size in inches
5/16 inch
Surface
Nickel-plated
Housing material
Brass
