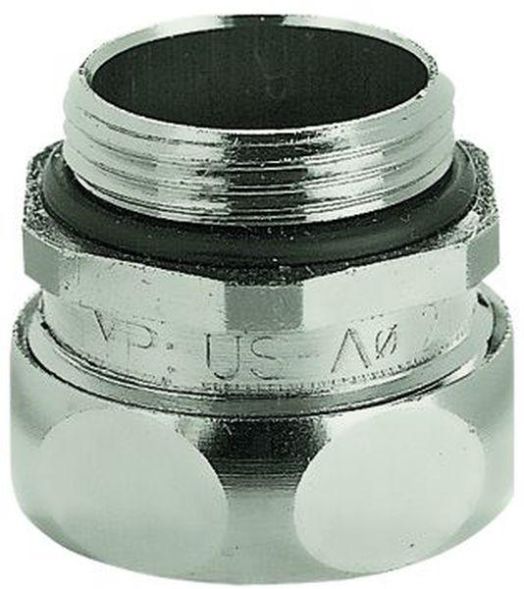

Metal safety screw connection straight US-M, IP 40 suitable for metal protection hoses SPR-AS / SPR-VA / FLEXAgraff-AS / FLEXAgraff-VA metric external thread, including inner sleeve, sealing ring and O-ring, housing with hexagon wrench surface Material: nickel-plated brass Temperature range: -40°C ... +125°C Properties: high dust and liquid protection / force-locking connection of hose and screw connection / perfect grounding / covering of the hose ends / vibration and tensile strength
| Property | Value |
| Protection class (IP) depending on hose: | 40 |
| Nominal diameter: | 45.0 mm |
| Largest outer diameter of the hose: | 45.0 mm |
| Smallest inner diameter of the hose: | 40.0 mm |
| Thread connection size: | M40 x 1.5 |
| Perm. in combination with protective hose DIN EN 61386-23: | yes |
| Total length: | 43.0 mm |
| Thread length: | 13.0 mm |
| Rotatable thread: | no |
| Nominal size in inches: | 1 1/4 inch |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Approved in combination with protective hose UL: | no |
| Approved in combination with protective hose CSA: | no |
| Approved in combination with protective hose FI: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -40 to +125 °C |
| Thread number: | 1.5 |
| Thread type: | metric |
| Type of connection of the screw connection to the housing: | thread |
| Number of entries: | 1 |
| With earth connection: | no |
Features
One-piece
No
Connection type of screw connection to the housing
Thread
Smallest inner diameter of the hose
40.0 mm
Approved in combination with protective hose DIN EN 61386-23
Yes
Protection class (IP) depends on hose
40
With earth connection
No
Thread Number of turns
1.5
Approved in combination with protective hose CSA
No
HAB
US-M40 Metal
Minimal order
20 pcs
Manufacturer
HAN
15010327040
GTIN
4025113145437
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-40 to +125 °C
Overall length
43.0 mm
Thread connection size
M40x1.5
Thread type
Metric
Thread length
13.0 mm
Nominal diameter
45.0 mm
Nominal size in inches
1 1/4 inch
Surface
Nickel-plated
Housing material
Brass
