Description

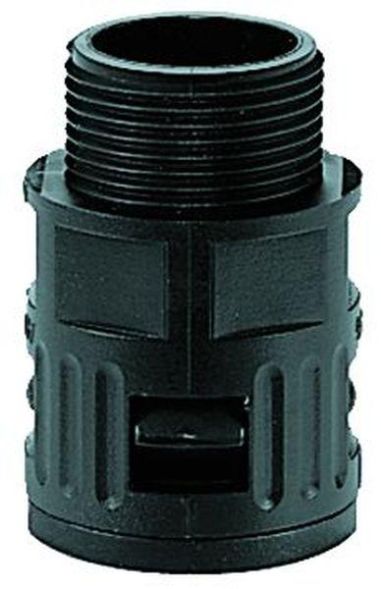

Plastic quick screw connection straight RQG1-M, IP 66 one-piece, metric external thread, conical sealing, for ROHRflex corrugated hoses Material: plastic (PA), color: black (also available in gray) Temperature range: -40°C ...+120°C, Approvals: tested EN/IEC 61386-23 / UL 1696 CSA 22.2 UR-File-no E86359 / NFPA 130 - ASTM E 162-E 662 SMP 800-C /Lloyds Register of Shipping / Gost, Properties: resistant to oil and petrol / free from silicone, cadmium and halogen / largely resistant to acids and solvents
| Property | Value |
| Thread size: | M16 x 1.5 |
| Nominal size in inches: | 5/16 inch |
| Max. in combination with protective hose according to DIN EN 61386-23: | yes |
| Design: | straight |
| Rotatable thread: | no |
| Design: | external thread |
| Connection type: | thread |
| Thread type: | metric |
| Thread turns per inch: | 1.5 |
| Thread material: | polyamide (PA) |
| Weight length: | 11.5 mm |
| Lenght: | 37.0 mm |
| Height: | 20.0 mm |
| Seal material: | without seal |
| min. inner Ø of hose: | 10.0 mm |
| max. outer Ø of hose: | 13.0 mm |
| Color: | black |
| Max. in combination with protective hose CSA: | yes |
| Approved in combination with protective hose UR: | yes |
| Approved in combination with protective hose VdTÜV/GGVSEB: | no |
| Approved in combination with protective hose Lloyds Register: | yes |
| Nominal diameter: | 13.0 mm |
| Protection class (IP): | IP66 |
| Material: | Polyamide (PA) |
| Operating temperature: | -40 to +120 °C |
Features
Approved in combination with protective hose UR
Yes
Approved in combination with protective hose CSA
Yes
HAB
RQG1-MAD13,0 M16x1,5 black
Minimal order
50 pcs
Manufacturer
HAN
15020055214
GTIN
4025113174758
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-40 to +120 °C
Color
Thread type
Metric
Height
20.0 mm
Length
37.0 mm
Nominal diameter
13.0 mm
Nominal size in inches
5/16 inch
IP protection)
IP66
Connection type
Thread
Material
Polyamide (PA)
