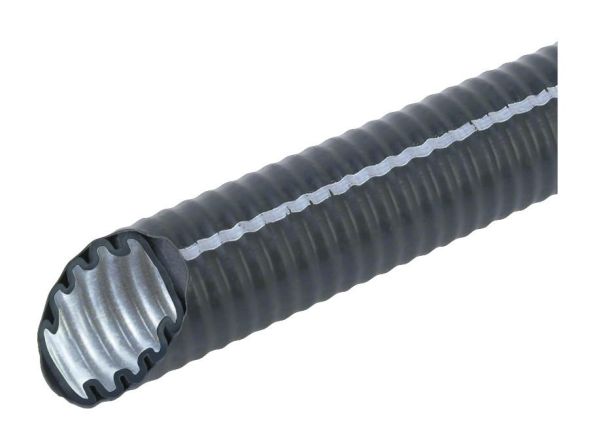

FFKuS-EM-F-LS0H Low Smoke is a medium-sized corrugated plastic pipe made of special plastic, with a highly slippery inner layer, plastic jacket, in black (RAL 9005), non-flame-spreading, halogen-free. This corrugated plastic pipe is used especially for installation in concrete. The advantage is the extremely low smoke development. This makes escape routes easier to identify and, because it is halogen-free, no dangerous toxic and corrosive gases are produced. Halogen-free plastic corrugated pipes are marked with a continuous white longitudinal stripe.0605 DIN EN 61386-22 100% halogen-free according to DINV 0604-2-100 Smoke gas density according to DIN EN 61034-2 Minimum compressive strength: 750N/5cm
| Property | Value |
| Outer diameter: | 63 mm |
| Inner diameter: | 48.4 mm |
| Highly slippery inner layer: | no |
| Material: | Polypropylene (PP) |
| With sleeve: | no |
| Color: | black |
| Halogen-free: | yes |
| Flame-retardant: | yes |
| Bending behavior: | flexible |
| Surface-mounted: | yes |
| On wood: | yes |
| Hollow wall: | yes |
| Suitable for concrete installation: | yes |
| Machinery and plant installation: | yes |
| Underfloor installation (screed): | yes |
| Installation outdoors: | no |
| Laying in the ground: | yes |
| Operating temperature: | -45 to 105 °C |
| RAL number: | 9005 |
Features
Inner diameter
48.4 mm
Bending behavior
Flexibel
HAB
FFKuS-EM-F-LS0H 63 halogen-free
Minimal order
25 meters
Manufacturer
HAN
25510063
GTIN
4013960180985
Outer diameter
63 mm
Operating temperatur
-45 to 105 °C
Color
Halogen free
Yes
RAL number
9005
Material
Polypropylene (PP)
