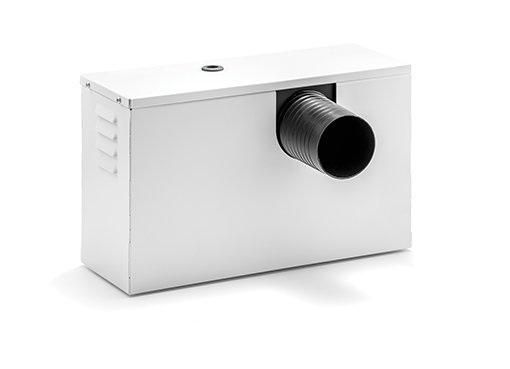

Condensate atomizer
The condensate produced by air conditioning systems is often a problem and is difficult to remove. In the Soloclim, for example, this is done during winter operation through a drainage pipe that leads the condensate outside. If this is not possible, the SCBR3 atomizer is the optimal solution. SCBR3 is fed through the Soloclim's condensate drain pipe. The condensate is atomized, evaporated and expelled thanks to the innovative system with piezoelectric cells. SCBR3 can be installed both inside (with 80 mm wall hole) and outside.
Technical data:
Dimensions 378 x 140 x 232 mm
Weight 4.8 kg
Atomization 2 L / h
Color Matt white RAL 9003
Inlet hole 16 mm on upper cover
Outlet flange diameter 80 mm rear
Consumption Max 220 W
Power supply 230 V
Components Piezo atomizer with 10 cells
Condensate drain
Power supply 230 V - 48 V
Float
Antifreeze resistor (consumption 15 W)
Steel housing
