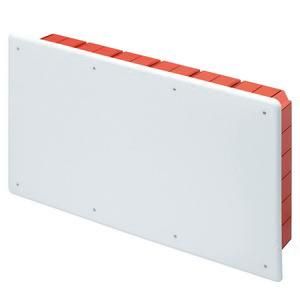

Junction box for flush mounting with screw lid.
| Property | Value |
| With screws: | yes |
| Depth: | 90 mm |
| Length: | 516 mm |
| Width: | 294 mm |
| Material: | Plastic |
| Color: | red |
| Sealable: | no |
| Halogen-free: | yes |
| Protection class (IP): | IP40 |
| Shape: | rectangular |
| Mounting type: | flush-mounted |
| Number of entries: | 48 |
| Design: | other |
| Design: | junction box/case |
| With nail tabs: | no |
| Windproof: | no |
| Insertion from the rear: | yes |
| Can be coupled: | yes |
| Housing feed-through through sealing membrane: | no |
| Functional integrity: | without |
| Inner depth: | 88 mm |
| Surface: | untreated |
| Fastening of the devices: | screws |
| For Pipe diameter: | other |
| Pipe locking: | no |
| Clamp fixed in position: | no |
| Equipment: | without |
| Light hook fastening: | no |
| Socket: | without |
| With shielding: | no |
| Housing feedthrough through knockout opening: | yes |
| With rotating Ring: | no |
| Special application: | without |
| Housing feedthrough through pipe socket: | no |
| Housing feedthrough through stepped membrane: | no |
| Pipe locking optional: | no |
| Cover design: | Mounting cover |
| Transparent cover: | no |
Features
HAB
UP DIN rail screw cap IP40 516x294x80
Manufacturer
HAN
GW48011
GTIN
8011564016484
Version
Other
Cover design
Mounting cover
Design
Junction box
Width
294 mm
Color
Shape
Rectangular
Functional preservation
Without
Halogen free
Yes
Internal depth
88 mm
Length
516 mm
Mounting type
Flush-mounted
Surface
Untreated
IP protection)
IP40
Depth
90 mm
Material
Plastic
