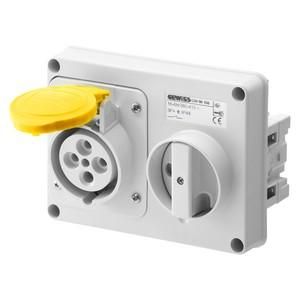

IEC socket without housing base for horizontal arrangement with switch and mechanical lock. The switch is locked and can only be operated when the plug is plugged in. The IEC socket can be secured with a padlock in either the on or off state. For installation in socket combinations, surface-mounted, flush-mounted housings and for installation in machines and systems.
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 3 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | no |
| Fuse protection: | without |
| Voltage according to EN 60309-2: | 110 V (50+60 Hz) yellow |
| Time setting: | 4 h |
| Identification color: | yellow |
| Protection class (IP): | IP44 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Switch version: | without |
| Version: | upper part |
Features
HAB
Horizontal without housing 32A/3 pin 110V IP44
Manufacturer
HAN
GW66112
GTIN
8011564029187
Version
Top
Design of the switch
Without
IEC current
32 A
Identification color
Yellow
Military version
No
Number of poles
3
IP protection)
IP44
Voltage according to EN 60309-2
110 V (50+60 Hz) yellow
Time position
4 hours
Housing material
Plastic
