Description

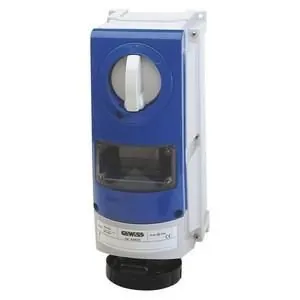

IEC socket in a housing for vertical installation with switch and mechanical lock. The switch is locked and can only be operated when the plug is plugged in. The IEC socket can be secured with a padlock in either the on or off state. Cylindrical fuses with size 10, 3x38 mm for rated currents 16 and 32 A and size 22x58 mm for 63 A.
| Property | Value |
| IEC current: | 32 A |
| Number of poles: | 4 |
| Switch: | mechanical locking |
| Empty spaces on mounting rail: | yes |
| Protection: | cylindrical fuse |
| Voltage according to EN 60309-2: | 500 V (50+60 Hz) black |
| Time setting: | 7 h |
| Identification color: | black |
| Protection class (IP): | IP66 |
| With residual current device: | no |
| Housing material: | plastic |
| Military version: | no |
| Switch design: | without |
| Design: | Lower part and upper part |
Features
HAB
Vertical with housing 32A/4 pin 500V IP66
Manufacturer
HAN
GW66971
GTIN
8011564074408
Version
Bottom and top
Design of the switch
Without
IEC current
32 A
Identification color
Black
Military version
No
Number of poles
4
IP protection)
IP66
Voltage according to EN 60309-2
500 V (50+60 Hz) black
Time position
7 hours
Housing material
Plastic
