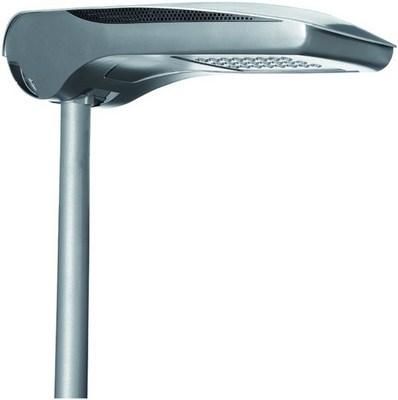

Street light in LED technology STREET O3, housing made of die-cast aluminum, color of lamp roof aluminum / lamp body graphite gray, reflector insert made of anodized pure aluminum 99.85%, with flat glass cover made of tempered safety glass, lamp roof can be opened upwards without tools, the electrical component plate can be replaced without tools, the angle of inclination can be adjusted from +20° to -20°, with climate membrane. The lamp can be used for mast attachment and mast attachment.
| Property | Value |
| Length: | 726 mm |
| Width: | 403 mm |
| Height/depth: | 185 mm |
| Suitable for number of bulbs: | 4 |
| Max. System power: | 131 W |
| Rated luminous flux according to IEC 62722-2-1: | 12900 lm |
| Color temperature: | 4000 K |
| Suitable for spigot size: | 42 mm |
| Nominal voltage: | 220 V |
| Housing color: | Aluminum |
| Operating device: | LED operating device, current-controlled |
| With Light source: | yes |
| Light source: | LED not replaceable |
| Socket: | without |
| Protection rating (IP): | IP66 |
| Protection class: | II |
| Impact resistance: | IK08 |
| Mounting type: | Attachment/approach |
| Color rendering index CRI: | 70-79 |
| Voltage type: | AC |
| With control gear: | yes |
| Adjustable optics: | no |
| Cover material: | transparent plastic |
| Housing material: | aluminum |
| Remote control: | Stand-alone control |
| Constant luminous flux control: | no |
| Light color: | white |
| With connection cable: | no |
| With radio control: | no |
| With program-controlled light control: | no |
| Surface: | powder-coated |
| LED nominal current at constant current: | 700 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | yes |
| Dimming DALI: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| Potentiometer dimming (device-integrated): | no |
| GPRS dimming: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Energy efficiency class of the built-in lamp: | A++, A+, A (LED) |
| Rated service life L80/B10 at 25 °C: | 100000 h |
| Light distributor: | Focus lens |
| Luminaire with limited surface temperature 'D-mark': | no |
| Rated ambient temperature according to IEC62722-2-1: | -25 °C |
| Luminaire luminous efficacy: | 98 lm/W |
| Power factor: | 0.90 |
| Wiring type: | Termination |
| Number of poles: | 4 |
| Connection type: | Screw terminal |
Features
Energy efficiency class of the permanently installed light source
A++, A+, A (LED)
HAB
Street 4M 131W 4000K 700mA 12900lm
Manufacturer
HAN
GW87413
GTIN
8011564830615
Connection type
Screw terminal
Type of wiring
Diploma
Rated lifetime L80/B10 at 25 °C
100000 hours
Rated luminous flux according to IEC 62722-2-1
12900lm
Rated ambient temperature according to IEC62722-2-1
-25°C
Operating device
LED control gear current controlled
Width
403 mm
Dimming 0-10 V
No
Dimming 1-10 V
Yes
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4000K
Color rendering index CRI
70-79
Version
Without
Remote control
Stand-alone control
Suitable for number of lamps
4
Suitable for braid size
42 mm
Housing color
Aluminum
Height/Depth
185 mm
Constant luminous flux control
No
LED nominal current at constant current
700mA
Power factor
0.90
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
98lm/W
Lamps
LED not replaceable
Light color
White
Light distributor
Focus lens
Length
726 mm
Max. system performance
131 W
With connection cable
No
With operating device
Yes
With radio control
No
With light source
Yes
With program-controlled lighting control
No
Mounting type
Essay/Approach
Nominal voltage
220V
Surface
Powder coated
Without dimming function
No
Number of poles
4
Impact resistance
IK08
IP protection)
IP66
Protection class
II
Voltage type
AC
Cover material
Plastic transparent
Housing material
Aluminum
