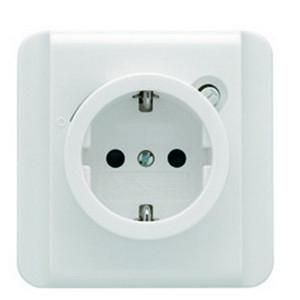

Gewiss GW95922 16A 30mA IP21 FI safety socket

Description

Features

Reviews

Safety socket with integrated residual current circuit breaker for flush-mounted installation in a device box with a 60 mm installation opening. It can be attached either with the integrated fastening claws or with screws (not included) in the device box. The socket is supplied with a full cover and increased contact protection (child protection). Connection with screwless terminals 2.5 mm on the inlet and outlet side.

Property	Value
Version:	SCHUKO
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP21
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	no
With hinged lid:	no
Mounting type:	Module carrier
Text field/labeling area:	no
Frequency:	50 Hz
Ejection mechanism:	no
Halogen-free:	no
Overvoltage protection:	no
Residual current protection:	yes
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Rated residual current:	30 mA
Number of switchable sockets:	1
Device width:	81 mm
Device height:	81 mm
Device depth:	70 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	yes
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	no
Number of active contacts (round):	2
Number of active contacts (flat):	2
With signal lamp:	no
Antibacterial treatment:	no
