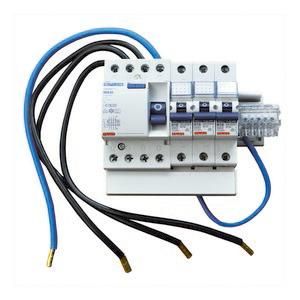

Meter outlet kit for installation in the upper connection room of double-storey meter systems with 2-row distributors. The complete set for connecting a basement room, washing machine and tumble dryer. The set consists of a residual current circuit breaker 40/0.03A 4-pole type A 3TE, 3 line circuit breakers B16 A 10 kA 1-pole, 1 comb rail 3-pole 6TE, 1 neutral conductor terminal 5x 6 mm, 3 cable sets H07 VK 10 mm black 30 cm, 1 cable set H07 VK 10 mm blue 30 cm and 1 cable set H07 VK 6 mm blue 30 cm,
| Property | Value |
| Rated current: | 40 A |
| Rated residual current: | 30 mA |
| Number of protected poles: | 3 |
| Switching neutral conductor: | no |
| Triggering characteristic: | B |
| Breaking capacity: | 10 kA |
| Number of combinations of residual current device/circuit breaker: | 1 |
| Wiring on terminal block: | no |
| Height: | 96 mm |
| Width: | 108 mm |
| Depth: | 72 mm |
Features
HAB
GW96080 RCD/LS fully wired
Manufacturer
HAN
GW96080
GTIN
8011564765467
Number of protected poles
3
Trigger characteristics
B
Rated residual current
30mA
Rated current
40A
Width
108 mm
Height
96 mm
Switching neutral conductor
No
Depth
72 mm
