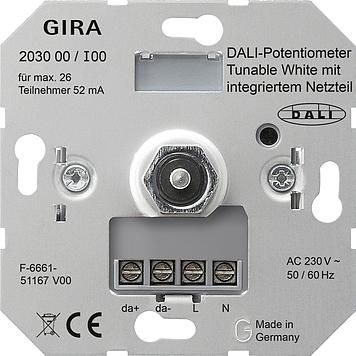

DALI potentiometer Tunable White with integrated power supply
Features:
Switching and brightness adjustment for lights with DALI interface.
Setting the color temperature for lights with DALI Device Type 8 (Colour Type: Colour Temperature) for Tunable White in accordance with IEC 62386-209
Integrated power supply in accordance with DALI specification (DIN IEC 60926) for 26 DALI devices.
Parallel connection of up to 4 DALI potentiometers with integrated power supply to supply up to 104 DALI devices.
Operation can be carried out in parallel from several control points. Communication takes place via broadcast.
Storage of color temperature limit values and a basic or switch-on brightness.
Notes:
When selecting the DALI power supply, the number of DALI participants and the DALI potentiometer (always counts as 1 participant) must always be taken into account.
| Property | Value |
| Can be used with motion detector: | no |
| Can be used with timer: | no |
| Frequency: | 50 to 60 Hz |
| Extension input: | no |
| Operating method: | Rotary/push button |
| Can be used with presence detector: | no |
| Can be used with button: | yes |
| Can be used with IR button: | no |
| Light value memory: | no |
| Can be used with radio button: | no |
| Mounting type: | Flush-mounted |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| DSI dimming: | no |
| Touch and Dim dimming: | no |
| Push-button dimming: | no |
| Manufacturer-specific dimming: | no |
