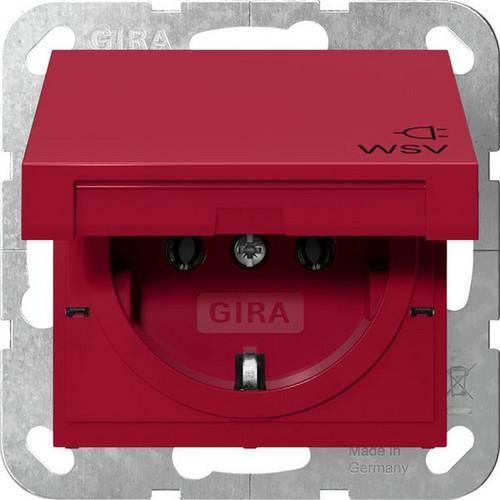

4454108 KD WSV System 55 Red Socket SCHUKO Manufacturer Article Number: 4454108, Manufacturer Article Name: 4454108 KD WSV System 55 Red
| Property | Value |
| Version: | SCHUKO |
| Number of units: | 1 |
| Color: | red |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | yes |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | additional safety supply (red) |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | other |
| Surface finish: | glossy |
| Number of modules (with modular construction): | 1 |
| Device width: | 55 mm |
| Device height: | 55 mm |
| Device depth: | 32 mm |
| Insulated installation: | no |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| With Signal lamp: | no |
| Antibacterial treatment: | no |
Features
Color
Red
HAB
4454108 KD WSV System 55 Red
Manufacturer
HAN
4454108
GTIN
4010337124146
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Version
SCHUKO
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Suitable for protection class (IP)
IP20
Device width
55 mm
Device height
55 mm
Device depth
32 mm
Halogen free
Yes
Insulated installation
No
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
Yes
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Other
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Additional safety supply (red)
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
