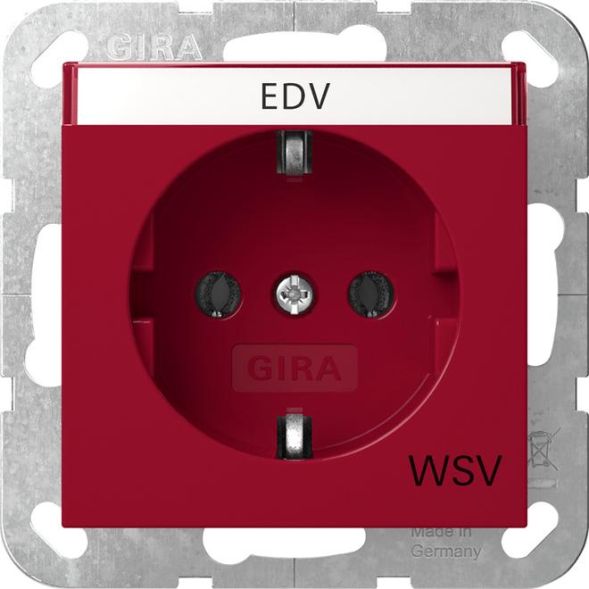

SCHUKO socket 16 A 250 V~ with label field with red cover and imprint 'WSV' (additional safety supply) Red glossy Notes: The bases of the SCHUKO sockets are color-coded accordingly.
| Property | Value |
| Version: | SCHUKO |
| Number of units: | 1 |
| Color: | red |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | no |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | yes |
| Ejection mechanism: | no |
| Halogen-free: | no |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | additional safety supply (red) |
| Twisted central insert: | no |
| Print/marking: | WSV |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | other |
| Material quality: | other |
| Surface: | other |
| Number of modules (with modular design): | 1 |
| Device width: | 55 mm |
| Device height: | 55 mm |
| Insulated installation: | no |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| With signal lamp: | no |
| Antibacterial treatment: | no |
Features
HAB
4457108 BSF WSV System 55 rt
Manufacturer
HAN
4457108
GTIN
4010337093299
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Printing/marking
WSV
Version
SCHUKO
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Suitable for protection class (IP)
IP20
Device width
55 mm
Device height
55 mm
Halogen free
No
Insulated installation
No
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
No
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Other
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Additional safety supply (red)
Text field/label area
Yes
Transparent
No
Twisted central insert
No
Material
Other
Material quality
Other
Overvoltage protection
No
