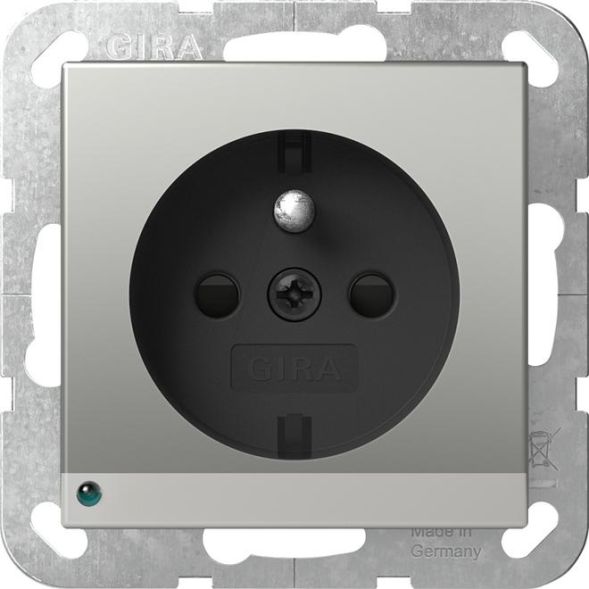

Socket with earthing pin 16 A 250 V~, LED orientation light and Shutter System 55 stainless steel (painted) Features: Socket with earthing pin and recessed light strip. The white LEDs cast a corridor of light downwards. This creates indirect orientation lighting that does not cause annoying glare, even in bedrooms. The integrated twilight sensor automatically switches the LED light on at dusk and off again when there is sufficient light. The LED light is completely integrated into the cover and there is no need for separate connection. With plug-in terminals. Notes: Approved according to NF C 61-314 (2003). Increased contact protection (Safety Plus) in accordance with DIN0620-1.
| Property | Value |
| Version: | other |
| Number of units: | 1 |
| Color: | stainless steel |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Flush-mounted |
| Text field/labeling area: | no |
| Ejection mechanism: | no |
| Halogen-free: | no |
| Surge protection: | no |
| Residual current protection: | no |
| Special power supply: | without special power supply |
| Twisted central insert: | no |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Claw/screw fastening |
| Material: | other |
| Material quality: | other |
| Surface: | painted |
| Surface finish: | glossy |
| Number of modules (with modular construction): | 1 |
| Device width: | 55 mm |
| Device height: | 55 mm |
| Insulated installation: | no |
| With loop-through function: | no |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | yes |
| Transparent: | no |
| Protective contact: | no |
| Protective conductor contact round: | yes |
| Number of active contacts (round): | 1 |
| With signal lamp: | yes |
| Antibacterial Treatment: | no |
Features
HAB
4489600 Earth pin LED+SH System 55 ES
Manufacturer
HAN
4489600
GTIN
4010337095965
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
1
Number of active contacts (approx.)
1
Version
Other
Surface finish
Glittering
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Suitable for protection class (IP)
IP20
Device width
55 mm
Device height
55 mm
Halogen free
No
Insulated installation
No
With loop-through function
No
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
Yes
With signal lamp
Yes
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Flush-mounted
Nominal voltage
250V
Rated current
16A
Surface
Painted
Protective contact
No
Protective conductor contact round
Yes
Special power supply
Without special power supply
Text field/label area
No
Transparent
No
Twisted central insert
No
Material
Other
Material quality
Other
Overvoltage protection
No
