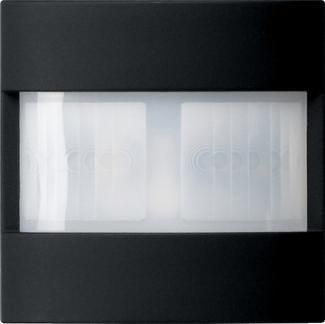

System 3000 motion detector attachment 1.10 m Standard System 55 Matt black Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension insert 3-wire. - Extension of the detection area in combination with 3-wire extension insert. - Adjustable brightness threshold. - Sensitivity can be set in four levels. - If a System 3000 extension insert with operating attachment or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. With System 3000 dimming insert: - Switch on with the last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Notes: - The detection field is aligned horizontally and may not be limited when used outdoors. Therefore, make sure that the installation location is suitable for outdoor use or use the 2.20 m motion detector attachment.
| Property | Value |
| Installation height: | 1.10 m |
| Installation type: | Flush-mounted |
| Design: | Motion detector |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 180 ° |
| Max. Duty cycle: | 2 min |
| Max. range to one side: | 25 m |
| Max. Frontal range: | 40 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Color: | black |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
