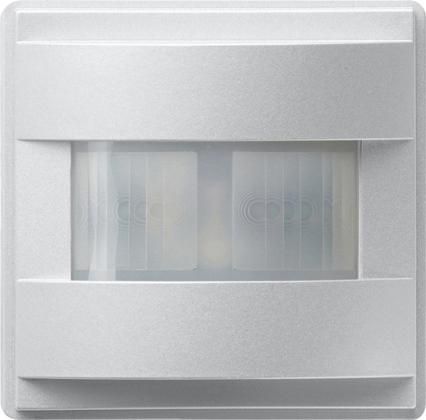

System 3000 motion detector attachment Mounting height up to 1.10 m Standard attachment Pure white Features: Automatic switching of lighting, depending on heat movement and ambient brightness. Operation with System 3000 switching, dimming or extension insert 3-wire. Extension of the detection area in combination with extension insert 3-wire. Adjustable brightness threshold. Sensitivity adjustable in four levels. If a System 3000 extension insert with operating attachment or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. With System 3000 dimming insert: Switch on with the last set brightness or saved switch-on brightness. The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Notes: The detection field is aligned horizontally and may not be limited when used outdoors. Therefore, make sure that the installation location is suitable for outdoor use or use the motion detector attachment 2.20 m.
| Property | Value |
| Installation height: | 1.10 m |
| Installation type: | Flush-mounted |
| Design: | Motion detector |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 180 ° |
| Max. duty cycle: | 2 min |
| Max. Range to one side: | 25 m |
| Max. Frontal range: | 40 m |
| HVAC control: | no |
| Response brightness adjustable: | yes |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Color: | white |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | yes |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| RAL number (similar): | 9010 |
