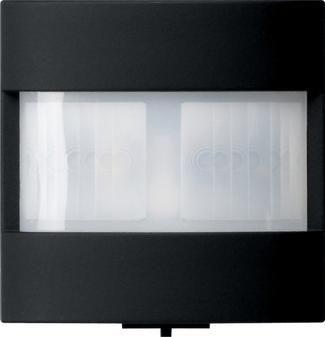

System 3000 motion detector attachment 1.10 m Komfort BT System 55 matt black Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension insert 3-wire. - Extension of the detection area in combination with 3-wire extension insert. - When connecting a System 3000 extension insert with operating attachment or mechanical button to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. - Manual switching between automatic, permanently on and permanently off possible on the device. With System 3000 switching insert: - Short-term operation With System 3000 dimming insert: - Switch on with the last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Functions with the Gira Bluetooth app: - Setting the brightness threshold. - Sensitivity of both sensors can be set individually (0, 25, 50, 75, 100%). - Setting the run-on time. - Forced functions: automatic operation, permanent on/off, time-limited on/off for 0.5 to 5 hours. - Presence simulation. - Switch-off advance warning. - Daytime operation. - Walking test. - Switch on with last set brightness or saved switch-on brightness in combination with a dimmer insert. Notes: - The detection field is aligned horizontally and may not be limited when used outdoors. Therefore, when using the device outdoors, ensure that the installation location is suitable or use the 2.20 m motion detector attachment.
Property | Value |
Installation height: | 1.1 m |
Installation type: | Flush-mounted |
Design: | Motion detector |
Constant light control: | no |
Adjustable response sensitivity: | yes |
Horizontal detection angle: | 1 to 180 ° |
Anti-creep protection/rear field monitoring: | no |
Min. duty cycle: | 10 s |
Max. duty cycle: | 30 min |
Max. range to one side: | 19 m |
Max. Frontal range: | 32 m |
HVAC control: | no |
Response brightness adjustable: | no |
Networkable: | yes |
Teach function for response brightness: | no |
Dimming function with dimming insert: | no |
Suitable for protection class (IP): | IP20 |
Suitable for wireless transmission: | no |
Color: | black |
Staircase monitoring: | yes |
Halogen-free: | yes |
Animal corridor: | yes |
Material: | Plastic |
Material quality: | Thermoplastic |
