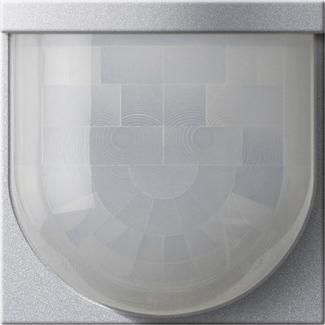

System 3000 motion detector attachment Standard mounting height up to 2.20 m System 55 Color aluminum Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension unit insert 3-wire. - Extension of the detection area in combination with extension unit insert 3-wire. - Adjustable brightness threshold. - Sensitivity adjustable in four levels. - When a System 3000 extension unit insert with operating attachment or mechanical button is connected to the main unit, the lighting can be switched on or dimmed for the duration of the follow-up time. With System 3000 dimming insert: - Switch on with last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using a System 3000 extension insert with operating attachment.
| Property | Value |
| Installation height: | 2.2 m |
| Installation type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 1 to 180 ° |
| Creep under protection/rear field monitoring: | no |
| Max. duty cycle: | 2 min |
| Max. range to one side: | 3 m |
| Max. Frontal range: | 12 m |
| HVAC control: | no |
| Response brightness adjustable: | no |
| Networkable: | no |
| Teach function for response brightness: | no |
| Suitable for protection class (IP): | IP20 |
| Suitable for wireless transmission: | no |
| Color: | Aluminum |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
