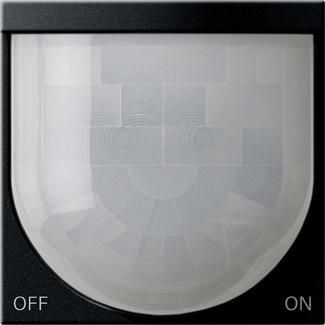

System 3000 motion detector attachment 2.20 m Komfort BT System 55 matt black Features: - Automatic switching of lighting, depending on heat movement and ambient brightness. - Operation with System 3000 switching, dimming or extension insert 3-wire. - Extension of the detection area in combination with 3-wire extension insert. - When connecting a System 3000 extension insert with operating attachment or mechanical button to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. - Manual switching between automatic, permanently on and permanently off possible on the device. With System 3000 switching insert: - Short-term operation. With System 3000 dimming insert: - Switch on with last set brightness or saved switch-on brightness. - The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Functions with Gira Bluetooth app: - Setting the brightness threshold. - Sensitivity of both sensors can be set individually (0, 25, 50, 75, 100%). - Setting the run-on time. - Forced functions: automatic operation, permanent on/off, time-limited on/off for 0.5 to 5 hours. - Presence simulation. - Switch-off advance warning. - Day operation. - Walk test. - Switch on with the last set brightness or saved switch-on brightness in combination with a dimmer insert.
| Property | Value |
| Installation height: | 2.2 m |
| Installation type: | Flush-mounted |
| Design: | Motion detector |
| Constant light control: | no |
| Adjustable response sensitivity: | yes |
| Horizontal detection angle: | 1 to 180 ° |
| Creep under protection/rear field monitoring: | no |
| Min. duty cycle: | 10 s |
| Max. duty cycle: | 30 min |
| Max. range to one side: | 6 m |
| Max. Frontal range: | 12 m |
| HVAC control: | no |
| Response brightness adjustable: | no |
| Networkable: | no |
| Dimming function with dimming insert: | yes |
| Suitable for protection class (IP): | IP20 |
| Suitable for wireless transmission: | no |
| Color: | black |
| Staircase monitoring: | yes |
| Halogen-free: | yes |
| Animal corridor: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
