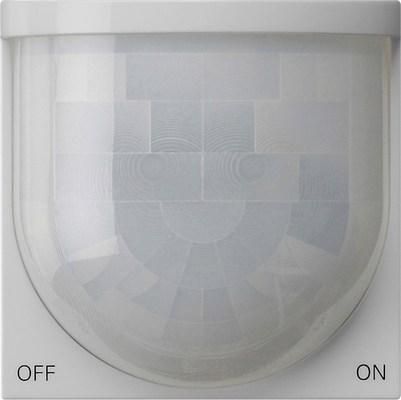

System 3000 motion detector attachment 2, 20 m Komfort BT System 55 matt gray Features: Automatic switching of lighting, depending on heat movement and ambient brightness. Operation with System 3000 switching, dimming or extension insert 3-wire. Extension of the detection range in combination with extension insert 3-wire. When connecting a System 3000 extension insert with operating attachment or mechanical button to the main unit, the lighting can be switched on or dimmed for the duration of the run-on time. Manual switching between automatic, permanently on and permanently off is possible on the device. With System 3000 switching insert: short-term operation. With System 3000 dimming insert: switch on with last set brightness or saved switch-on brightness. The switch-on brightness can only be saved permanently using the System 3000 extension insert with operating attachment. Functions with Gira Bluetooth app: setting the brightness threshold. Sensitivity of both sensors can be set individually (0, 25, 50, 75, 100%). Setting the run-on time. Forced functions: Automatic operation, permanent on/off, time-limited on/off for 0.5 to 5 hours. Presence simulation. Switch-off advance warning. Day operation. Walk test. Switch on with the last set brightness or saved switch-on brightness in combination with a dimmer insert.
Property | Value |
Installation height: | 2.2 m |
Installation type: | Flush-mounted |
Design: | Motion detector |
Constant light control: | no |
Adjustable response sensitivity: | yes |
Horizontal detection angle: | 1 to 180 ° |
Creep under protection/rear field monitoring: | no |
Min. duty cycle: | 10 s |
Max. duty cycle: | 30 min |
Max. range to one side: | 6 m |
Max. Frontal range: | 12 m |
HVAC control: | no |
Response brightness adjustable: | no |
Networkable: | no |
Dimming function with dimming insert: | yes |
Suitable for protection class (IP): | IP20 |
Suitable for wireless transmission: | no |
Color: | gray |
Staircase monitoring: | yes |
Halogen-free: | yes |
Animal corridor: | no |
Material: | Plastic |
Material quality: | Thermoplastic |
