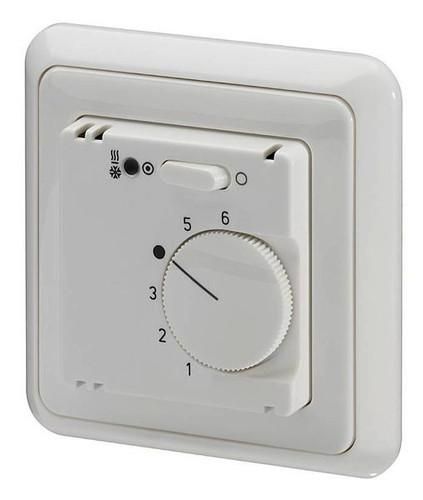

Mechanical two-point room temperature controller with changeover switch for heating/cooling in conjunction with a heat pump. The 'heating' or 'cooling' switching behavior can be selected using a switch. When the heat pump is in cooling mode, the room temperature controller must be manually set to cooling mode; the setting on the heat pump manager is always decisive for heating or cooling mode. With surface switch frame for flush-mounted installation as standard, can be used in almost all surface switch programs using an intermediate frame (50 x 50 mm in accordance with DIN 49075) from the surface switch program manufacturer (not included in scope of delivery), control range 5 °C to 30 °C, index number scale, temperature range restriction in the housing cover, switching capacity 230 V/5 (2) A, connection of up to 5 actuators possible, IP 30 when flush-mounted, color alpine white (similar to RAL 9010). Dimensions in mm (W x H x D) 81 x 85 x 28.5 (height 16 mm mounted in flush-mounted box). No connection of a dew point sensor to interrupt the cooling operation if there is a risk of condensation, this must be done via a higher-level control (e.g. RKS WPM).
