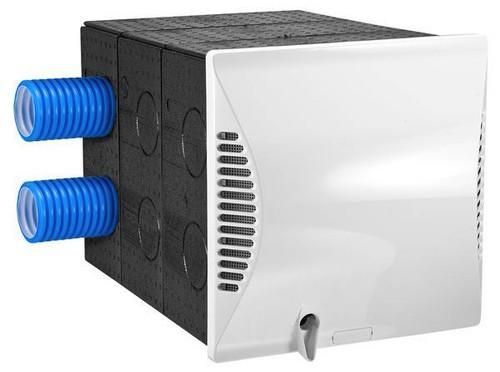

Square wall sleeve made of EPP, 320 x 320 mm, length 480 mm, to be adapted on site to wall thickness 420~480 mm, including accessories for adapting the ventilation unit to the wall thickness (breakthrough in external wall 325 x 325 mm) and UV-resistant external wall panel with drip edge made of plastic with integrated condensate drainage (348 x 365 x 55 mm). Connection of an adjoining room through supply air or exhaust air duct with ventilation pipe of nominal width DN75.
| Property | Value |
| Material: | Plastic |
| Nominal diameter of duct: | 300 mm |
| Front width: | 320 mm |
| Lockable: | no |
| Front height: | 320 mm |
| With wire mesh: | no |
| With insect screen: | no |
| Installation depth: | 480 mm |
| With overpressure flap, blowing out: | no |
| With overpressure flap, suction: | no |
| With counter-rotating flap valve: | no |
| With co-rotating flap valve: | no |
| With installation frame: | yes |
| Motor controlled: | no |
| Color: | black |
Features
HAB
DL50Q2P
Manufacturer
HAN
378750
GTIN
4015627378759
Lockable
No
Installation depth
480 mm
Color
Material
Plastic
