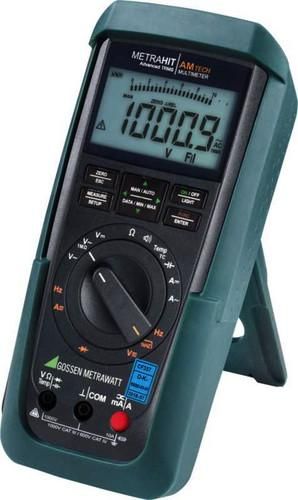

TRMS universal multimeter with 12,000 digits digital display and current measuring ranges optimized for measuring transducers. The METRAHIT AM TECH with rubber protective cover is a universal multimeter from the METRAHIT Advanced Multimeter series. The multimeters in the METRAHIT AM series: METRAHIT AM BASE, PRO, TECH and XTRA are absolutely robust and reliable digital multimeters with housings made of impact-resistant plastic. The devices have an attractive design and feature the latest technology. . The METRAHIT AM TECH is a universal multimeter from the METRAHIT Advanced Multimeter series with current measuring ranges optimized for measurements on measuring transducers in the process industry. Top technology down to the last detail: The robust digital multimeters in the METRAHIT AM series offer impressive performance features in every respect. They are equipped with the latest technology and guarantee highly precise results. Their ergonomic design ensures maximum user-friendliness and safety. With their wide range of functions, they are ideal for demanding measuring tasks in many areas. TRMSAC, AC+DC measurement up to 10 kHz for voltage and current, direct current measurement with increased accuracy of 0.1% for measurements on measuring transducers, wide-range capacitance measurement. Universally applicable in all areas of electrical engineering! True RMS measurement up to 10 kHz with 12000 digits digital display and analogue scaleMeasurement of voltage and current, DC, AC and ACDC, resistance, capacitance, temperature, frequency, continuity / diodesClip function for current measurement with converters and sensorsAutomatic measurement range selection and measured value storageSafety for the user and the device in the measurement categories CAT IV up to 600V and CAT III up to 1000V. The multimeter is suitable for universal use in electrical engineering, in the areas of electrical installation, laboratory, telecommunications, training, etc. Thanks to current measuring ranges with increased accuracy, it is particularly suitable for measurements on measuring transducers in the process industry.The device is suitable for field use and has an internal mains-independent power supply. 20 multimeter functionsResolution ±12,000 digits, 4½ digitsBasic accuracy ±0.05% (VDC)Voltage ACTRMS, voltage AC+DC TRMS, voltage DC, frequency (Hz, kHz), resistance, diode test, continuity test, capacitance, current ACTRMS, current AC+DCTRMS, temperature with K-thermocouplesAutorange current measurement from 1 mA to 10 A (16A) via a socket and a fuseClip function for current measurement with converters and sensorsAdditional filter function and voltage measurement with reduced input resistance to limit interference, e.g. when measuring on frequency convertersAutomatic and manual measuring range selectionAutomatic measured value storage DATA / MIN / MAXLarge, light blue illuminated display with extra large digits (15mm) and analogue bar graph for dynamic processesSeparate battery and fuse compartmentPatented automatic socket lock ABSMeasurement category 600 V CAT IV, 1000 V CAT III. DAkkS calibration certificate included36 month guarantee on material and manufacturing defects. 1 x multimeter 1 pair of safety measuring leads (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV (KS17-2) 1 x protective rubber cover GH18 with carrying strap 2 x batteries 1.5 V, type AA 1 x short operating instructions in German/English 1 x CD-ROM, contents: operating instructions in German and English 1 x DAkkS calibration certificate
Property | Value |
Max. Voltage measuring range AC: | 1000 V |
Measuring range selection: | manual/automatic |
Display: | analog/digital |
With level measurement (dB): | no |
Frequency measurement: | yes |
Capacitance measurement: | yes |
Analog bar display: | yes |
Multiple display: | no |
Smallest resolution for alternating voltage: | 0.01 mV |
Max. voltage measuring range for DC: | 1000 V |
Smallest resolution for direct voltage: | 0.01 mV |
Max. current measuring range for AC: | 10 A |
Smallest resolution for alternating current: | 1 µA |
Max. current measuring range for DC: | 10 A |
Smallest resolution for direct current: | 1 µA |
Max. Resistance measuring range: | 40 MOhm |
Lowest resistance resolution: | 0.01 Ohm |
Continuity test/diode test: | yes |
Relative value measurement: | no |
Inductance measurement: | no |
Conductance measurement: | no |
Instantaneous value memory (Data Hold): | yes |
Maximum value memory: | yes |
Minimal value memory: | yes |
Peak value memory: | no |
True RMS measurement (TRMS): | yes |
Duty cycle measurements: | no |
Measured value memory: | no |
Interface: | no |
Measuring circuit category: | CAT IV |
Analog bar display analog/logarithmic: | no |
Bluetooth interface: | no |
Speed measurement: | no |
Continuity test: | yes |
Explosion-tested version: | no |
IR interface: | no |
Cable length measurement: | no |
Smallest resolution frequency: | 0.01 Hz |
Smallest resolution capacity: | 0.00001 µF |
Smallest resolution temperature: | 0.1 °C |
Power and energy measurement: | no |
Line symmetry test for two-wire connections abE: | no |
Max. frequency measuring range: | 100 kHz |
Max. capacitance measuring range: | 1000 µF |
Max. voltage measuring circuit category: | 600 V |
Max. Temperature measuring range: | 1372 °C |
Milliohm measurement with 4-wire technology (Kelvin connection): | no |
Nominal test voltage 10 V: | no |
Nominal test voltage 100 V: | no |
Nominal test voltage 1000 V: | no |
Nominal test voltage 250 V: | no |
Nominal test voltage 50 V: | no |
Nominal test voltage 500 V: | no |
Harmonics analysis/Power Quality: | no |
Automatic circuit breaker: | no |
Temperature measurement RTD: | no |
Temperature measurement TC: | yes |
