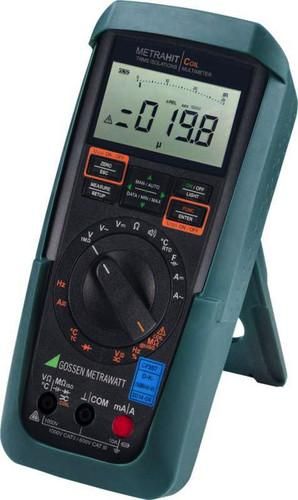

TRMS multimeter, motor winding and insulation tester with 30,000 digits. The METRAHIT COIL is a digital multimeter with insulation measurement and short-circuit detection. It is robust and reliable for professional use and has an attractive design with housings made of impact-resistant plastic and is technically state-of-the-art. METRAHIT COIL is a portable and robust measuring device, especially for servicing electrical machines and vehicles, e.g. generators, industrial trucks or forklifts. It is suitable for field use and has an internal mains-independent power supply. TRMS multimeter with 30,000 digits resolution for voltage, current, temperature, etc. Insulation resistance measurement with 50 to 1000 V test voltage and external voltage detection Short-circuit detection with 1,000 V test voltage (surge test). Compact tester for electrical machines, drives and generators. Detection of insulation faults and short circuits between windings, even those that only occur under load, with a test voltage greater than the operating voltage. Extensive multimeter functions for service and diagnosis, e.g. with duty cycle measurement for setting motors running in parallel. The METRAHIT COIL enables simple and efficient diagnosis of short circuits between windings in electrical machines, both in the laboratory and on site. The device is used in particular in the service of machines and vehicles with electric drives. The device is suitable for field use and has an internal mains-independent power supply. DAkkS calibration certificate included. 36-month guarantee on material and manufacturing defects. COIL test adapter for motors with other inductances on request. Scope of delivery: 1 x METRAHIT COIL multimeter 1 x COIL test adapter 10 mH to 50 mH 1 pair of safety measuring leads (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV (KS17-2) 2 x batteries 1.5 V, type AA 1 x short operating instructions in German/English 1 x DAkkS calibration certificate 1 x protective rubber cover
| Property | Value |
| Max. Voltage measuring range AC: | 1000 V |
| Measuring range selection: | manual/automatic |
| Display: | analog/digital |
| With level measurement (dB): | no |
| Frequency measurement: | yes |
| Capacitance measurement: | yes |
| Analog bar display: | yes |
| Multiple display: | no |
| Smallest resolution for alternating voltage: | 0.1 mV |
| Max. voltage measuring range for DC: | 1000 V |
| Smallest resolution for direct voltage: | 0.01 mV |
| Max. current measuring range for AC: | 10 A |
| Smallest resolution for alternating current: | 0.1 µA |
| Max. current measuring range for DC: | 10 A |
| Smallest resolution for direct current: | 0.1 µA |
| Max. Resistance measuring range: | 30 MOhm |
| Lowest resistance resolution: | 0.01 Ohm |
| Continuity test/diode test: | yes |
| Relative value measurement: | yes |
| Inductance measurement: | no |
| Conductance measurement: | no |
| Instantaneous value memory (Data Hold): | yes |
| Maximum value memory: | yes |
| Minimal value memory: | yes |
| Peak value memory: | no |
| True RMS measurement (TRMS): | yes |
| Duty cycle measurements: | yes |
| Measured value memory: | yes |
| Interface: | yes |
| Measuring circuit category: | CAT III |
| Analog bar display analog/logarithmic: | no |
| Bluetooth interface: | no |
| Speed measurement: | yes |
| Continuity test: | yes |
| Explosion-tested version: | no |
| IR interface: | yes |
| Insulation resistance measuring range: | 5 to 3100 MOhm |
| Cable length measurement: | no |
| Lowest frequency resolution: | 0.1 Hz |
| Smallest resolution for capacitance: | 0.00001 µF |
| Smallest resolution for temperature: | 0.1 °C |
| Power and energy measurement: | no |
| Line symmetry test for two-wire connections abE: | no |
| Max. frequency measuring range: | 300 kHz |
| Max. capacitance measuring range: | 300 µF |
| Max. Voltage measuring circuit category: | 600 V |
| Max. Temperature measuring range: | 1372 °C |
| Milliohm measurement with 4-wire technology (Kelvin connection): | no |
| Nominal test voltage 10 V: | no |
| Nominal test voltage 100 V: | yes |
| Nominal test voltage 1000 V: | yes |
| Nominal test voltage 250 V: | yes |
| Nominal test voltage 50 V: | yes |
| Nominal test voltage 500 V: | yes |
| Harmonics analysis/Power Quality: | no |
| Automatic circuit breaker: | no |
| Temperature measurement RTD: | yes |
| Temperature measurement TC: | yes |
