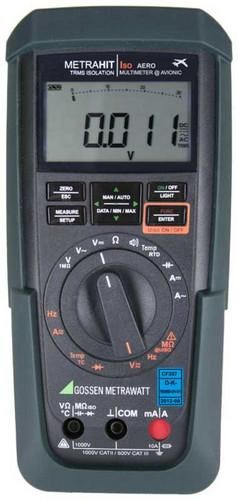

M246M METRAHIT ISO, AERO Version
| Property | Value |
| Max. Voltage measuring range AC: | 1000 V |
| Measuring range selection: | manual/automatic |
| Display: | analog/digital |
| With level measurement (dB): | no |
| Frequency measurement: | yes |
| Temperature measurement: | yes |
| Capacitance measurement: | yes |
| Multiple display: | no |
| Smallest resolution Alternating voltage: | 0.1 mV |
| Max. voltage measuring range DC: | 1000 V |
| Smallest resolution direct voltage: | 0.01 mV |
| Max. current measuring range AC: | 10 A |
| Smallest resolution alternating current: | 0.1 µA |
| Max. current measuring range DC: | 10 A |
| Smallest resolution direct current: | 0.1 µA |
| Max. Resistance measuring range: | 30 MOhm |
| Lowest resistance resolution: | 0.01 Ohm |
| Continuity test/diode test: | yes |
| Relative value measurement: | yes |
| Inductance measurement: | no |
| Conductivity measurement: | no |
| Instantaneous value memory (Data Hold): | yes |
| Maximum value memory: | yes |
| Minimal value memory: | yes |
| Peak value memory: | no |
| True RMS measurement (TRMS): | yes |
| Duty cycle measurements: | no |
| Measured value memory: | yes |
| Interface: | yes |
| Measurement circuit category: | CAT III |
| Bluetooth interface: | no |
| Speed measurement: | no |
| Continuity test: | yes |
| Explosion-tested version: | no |
| IR interface: | yes |
| Insulation resistance measuring range: | 0.005 to 3100 MOhm |
| Cable length measurement: | no |
| Lowest resolution frequency: | 0.1 Hz |
| Lowest resolution capacitance: | 0.00001 µF |
| Smallest temperature resolution: | 0.1 °C |
| Power and energy measurement: | no |
| Line symmetry test for two-wire connections abE: | no |
| Max. frequency measuring range: | 300 kHz |
| Max. capacitance measuring range: | 300 µF |
| Max. voltage measuring circuit category: | 600 V |
| Max. Temperature measuring range: | 1372 °C |
| Milliohm measurement with 4-wire technology (Kelvin connection): | no |
| Nominal test voltage 10 V: | yes |
| Nominal test voltage 100 V: | yes |
| Nominal test voltage 1000 V: | no |
| Nominal test voltage 250 V: | yes |
| Nominal test voltage 50 V: | yes |
| Nominal test voltage 500 V: | yes |
| Harmonics analysis/Power Quality: | no |
| Automatic circuit breaker: | no |
| Temperature measurement RTD: | yes |
| Temperature measurement TC: | yes |
| With screen backlight: | yes |
| Protection class (IP): | IP54 |
Features
Explosion-tested version
No
Manufacturer
HAN
M246M
GTIN
4012932121551
Interface
Yes
IP protection)
IP54
