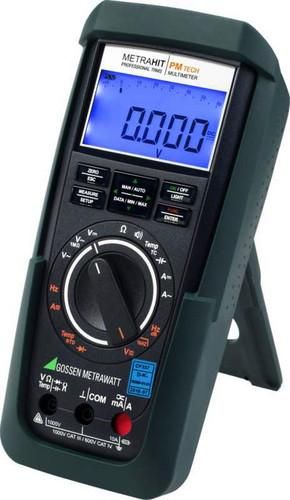

High-end TRMS system multimeter with 60,000 digits digital display, current measuring ranges optimized for measuring transducers and IR interface. The METRAHIT PM TECH is a universal multimeter from the METRAHIT Professional Multimeter series.The high-end TRMS multimeters from the METRAHIT PM series: METRAHIT PM TECH, XTRA and PRIME are absolutely robust and reliable digital multimeters developed for professional use. The devices have an attractive design with housings made of impact-resistant plastic and are technically state-of-the-art. The METRAHIT PM TECH is a universal multimeter from the METRAHIT Professional Multimeter series with current measuring ranges optimized for measurements on measuring transducers in the process industry.State-of-the-art quality measuring instruments with unique precision: 60,000 digits and 0.05% basic accuracy offer the highest level of result reliability.The latest technology ensures maximum safety. The variety of functions covers a wide spectrum of demanding measuring tasks. The innovative and ergonomic design inspires every day. TRMS AC, AC+DC measurement up to 20 kHz for voltage and current, direct current measurement with increased accuracy 0.1% for measurements on 4-20 mA measuring transducers, wide-range capacitance measurement. Universally applicable in all areas of electrical engineering! True RMS measurement up to 20 kHz with 60,000 digits digital display and analog scaleMeasurement of voltage and current, DC, AC and AC+DC, dB, resistance, capacitance, temperature, frequency, continuity / diodesClip function for current measurement with converters and sensorsAutomatic measurement range selection and measured value storageSafety for the user and the device in the measurement categories CAT IV up to 600V and CAT III up to 1000V. The multimeter is suitable for universal use in electrical engineering, in the areas of electrical installation, laboratory, telecommunications, training, etc. Thanks to current measuring ranges with increased accuracy, it is particularly suitable for measurements on measuring transducers in the process industry.The device is suitable for field use and has an internal mains-independent power supply. DAkkS calibration certificate included36 month guarantee on material and manufacturing defects. 1 x multimeter1 pair of safety test leads (1.5 m) with 4 mm test probes, 1000 V CAT III, 600 V CAT IV (KS17-2)1 x hard case HC202 x batteries 1.5 V, type AA1 x short operating instructions in German/English1 x CD-ROM, contents: operating instructions in German and English1 x DAkkS calibration certificate1 x protective rubber cover
Property | Value |
Max. Voltage measuring range AC: | 1000 V |
Measuring range selection: | manual/automatic |
Display: | analog/digital |
With level measurement (dB): | yes |
Frequency measurement: | yes |
Capacitance measurement: | yes |
Analog bar display: | yes |
Multiple display: | no |
Smallest resolution for alternating voltage: | 0.01 mV |
Max. voltage measuring range for DC: | 1000 V |
Smallest resolution for direct voltage: | 0.01 mV |
Max. current measuring range for AC: | 10 A |
Smallest resolution for alternating current: | 1 µA |
Max. current measuring range for DC: | 10 A |
Smallest resolution for direct current: | 1 µA |
Max. Resistance measuring range: | 60 MOhm |
Lowest resistance resolution: | 0.01 Ohm |
Continuity test/diode test: | yes |
Relative value measurement: | yes |
Inductance measurement: | no |
Conductance measurement: | no |
Instantaneous value memory (data hold): | yes |
Maximum value memory: | yes |
Minimal value memory: | yes |
Peak value memory: | no |
True RMS measurement (TRMS): | yes |
Duty cycle measurements: | no |
Measured value memory: | no |
Interface: | yes |
Measuring circuit category: | CAT IV |
Analog bar display analog/logarithmic: | no |
Bluetooth interface: | no |
Speed measurement: | no |
Continuity test: | yes |
Explosion-tested version: | no |
IR interface: | yes |
Cable length measurement: | no |
Smallest resolution frequency: | 0.01 Hz |
Smallest resolution capacity: | 0.00001 µF |
Smallest resolution temperature: | 0.1 °C |
Power and energy measurement: | no |
Line symmetry test for two-wire connections abE: | no |
Max. frequency measuring range: | 300 kHz |
Max. capacitance measuring range: | 600 µF |
Max. voltage measuring circuit category: | 600 V |
Max. Temperature measuring range: | 1372 °C |
Milliohm measurement with 4-wire technology (Kelvin connection): | no |
Nominal test voltage 10 V: | no |
Nominal test voltage 100 V: | no |
Nominal test voltage 1000 V: | no |
Nominal test voltage 250 V: | no |
Nominal test voltage 50 V: | no |
Nominal test voltage 500 V: | no |
Harmonics analysis/Power Quality: | no |
Automatic circuit breaker: | no |
Temperature measurement RTD: | yes |
Temperature measurement TC: | yes |
