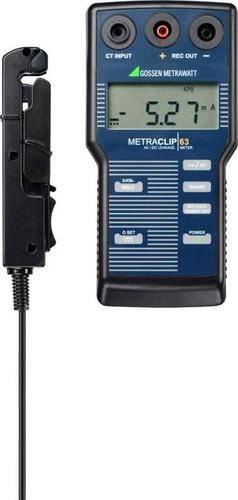

Clamp milliammeter for measuring leakage currents and process signal currents (4-20 mA). The clamp milliammeter is ideally suited to measuring small direct and alternating currents from 1 mA. Equipped with a power-saving circuit, data interface, signaling of measuring range overruns and flexible current sensor, it can also be used under very unfavorable mechanical conditions.Measuring ranges: - DC 100 mA / 1000 mA, - AC 100 mA / 1000 mA / 10 Awith digital displaySwitching between DC and AC measurementsZero point adjustment for DC measurementsSave measured value (DATA - HOLD)Power-saving circuitCurrent clamp with 1.2 m cable lengthClamp opening 5 mm ØAnalog output (0 ... 100 mV) for connecting recording devices, e.g. memory multimeters. 1 measuring device1 current clamp4 LR6 batteries1 carrying case1 operating instructions1 data recording cable set, consisting of 2 cables of 1.8 m each, each with 1 touch-protected plug and 1 crocodile clip
| Feature | Value |
| Power measurement: | no |
| Current measuring range/DC: | 0.1 to 1 A |
| Current measuring range/AC: | 0 to 10 A |
| Clamp opening: | 5 mm |
| True effective value measurement (TRMS): | no |
| Leakage current measurement: | yes |
| Harmonics measurement: | no |
| Measurement in cable with forward and return conductors: | no |
| Version as adapter for connecting to multimeter: | yes |
| Interface: | yes |
| Voltage measurement/AC: | no |
| Voltage measurement/DC: | no |
| Resistance measuring range: | no |
| Display: | digital |
| Analog bar display: | no |
| Measuring range selection: | manual |
| Measuring circuit category: | CAT III |
