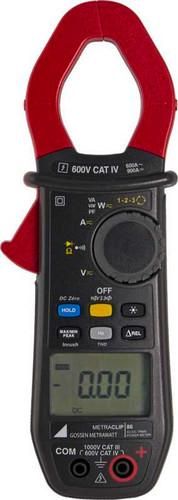

Multi-measuring clamp for current, voltage, power, harmonics and frequency, 600 V CAT IV. The METRAclip 86 multi-measuring clamp meets all the expectations of electrical trades and is suitable for applications in the low-voltage range with small and medium outputs, e.g. maintenance of electrical installations and machine parks, troubleshooting, installation of heating and air conditioning systems and measuring starting currents of motors. . Clamp opening: 34 mmCurrent: AC 60.00 / 600.0 A rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±900 A dc AC+DC 60.00 / 600.0 A rms60.00 / 600.0 / 900 A peak Starting current: 6 ..600 A rms / 900 A peakVoltage: AC 60.00 / 600.0 / 1000 V rms at 10 Hz - 3 kHz DC ±60.00 / ±600.0 / ±1000 V dc AC+DC 60.00 / 600.0 / 1000 V rms60.00 / 600.0 / 1400 V peakFrequency: f (Uac) 5.0 Hz ..19.99 kHzf (Iac) 5.0 Hz ..2999 Hz Power: Active power: 5999 W / 59.99 / 599.9 / 900 kW Apparent power: 5999 VA / 59.99 / 599.9 / 900 kVA Reactive power: 5999 var / 59.99 / 599.9 / 900 kvar PF -1.00 ..+1.00 THDr / THDf 0.0 ..100% / 0.0 ..1000% METRAclip 86 Electrical safety according to IEC 61010 True RMS measurement TRMS Current measurement (AC and DC) Voltage measurement (AC and DC) Power measurement (W, VA, var and PF) Harmonic measurement (THD) Start-up and overcurrent measurements (True Inrush) Frequency measurement Automatic measuring range switching Relative and differential measurements Display storage (DATA HOLD) Data acquisition (MIN, MAX, PEAK) Continuity test, acoustic signal Resistance measurement Diode test Display of the rotating field direction Phase sequence LCD / Digits with blue backlight 6,000 Automatic switch-off Auto-Power-Off Test report incl. 1 multimeter clamp2 red and black measuring cables (length 1.6 m), each with touch-protected plug and attachable test probe, 1000 V/15 A CAT IV1 black crocodile clip, CAT IV 1000 V/15 A1 9 V battery1 carrying case with wrist strap1 test report1 safety data sheet1 quick guide in German/English/French/Italian language1 operating instructions in German/English/French/Italian language on mini CD-ROM
| Feature | Value |
| Power measurement: | yes |
| Current measuring range/DC: | 0.01 to 900 A |
| Current measuring range/AC: | 1 to 600 A |
| Clamp opening: | 34 mm |
| True effective value measurement (TRMS): | yes |
| Leakage current measurement: | yes |
| Harmonics measurement: | yes |
| Measurement in cable with forward and return conductors: | yes |
| Version as adapter for connecting to multimeter: | no |
| Interface: | no |
| Voltage measurement/AC: | yes |
| Voltage measurement/DC: | yes |
| Resistance measuring range: | yes |
| Display: | digital |
| Analog bar display: | no |
| Measuring range selection: | automatic |
| Measuring circuit category: | CAT IV |
