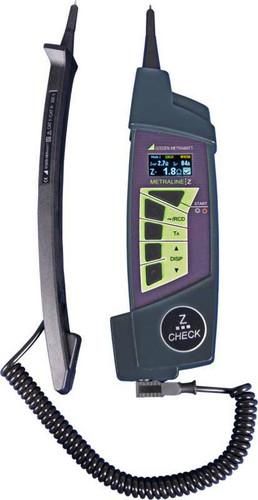

Loop resistance measuring device. The test device is used to measure fault loop impedances and network impedances. Table of common protective devices can be displayedDigital display, color backlit OLED display, switching between short and detailed displayLED for measuring point illuminationPatented fixation of the measuring tipsCompact and robust - for rough service operations and laboratory operation. The measuring range from 0 to 200 (0.27 to 200 according to 0413 / EN 61557) enables a short-circuit current calculation from 0 to 23 kA.The METRALINE Z-CHECK enables the following measurements:Fault loop impedance with short-circuit currentFault loop impedance with short-circuit current - without triggering the residual current circuit breakerNetwork impedance with short-circuit currentNetwork voltagePhase detection. 1 test device with mobile measuring tip 4 batteries (AAA) 1 case 1 short operating instructions 1 CD-ROM with operating instructions in the available languages 1 factory calibration certificate
| Property | Value |
| Display: | digital |
| Insulation resistance measurement: | yes |
| Surge arrester test: | no |
| Loop resistance/impedance measurement: | yes |
| Internal network resistance measurement: | no |
| RCD/FI test: | yes |
| RCD/FI test with increasing fault current: | no |
| RCD/FI analysis function: | no |
| Rotational field test: | no |
| Low resistance measurement: | no |
| Earth measurement: | no |
| Selective earth measurement: | no |
| Earth loop measurement: | no |
| Specific earthing measurement: | no |
| Measured value storage: | yes |
| Interface: | no |
| Printer connection: | no |
| Limit value display: | no |
| Resistances of insulating floors and walls: | no |
| Loop measurement without RCD/FI triggering: | no |
| Determination Short-circuit current/overcurrent protection devices: | no |
| Integrated printer: | no |
| Remote control of the test device: | no |
| Insulation resistance measurement with ramp function: | no |
| Measuring leakage currents with adapter: | no |
| Low-resistance measurement with ramp function: | no |
| PRCD test type S, type K: | no |
| Testing of e-charging stations, simulation of Vehicle status: | no |
| Checking IMDs and RCMs: | no |
| Structured measured value storage: | no |
