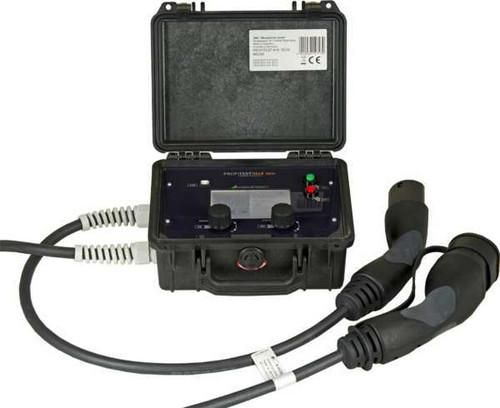

Communication tester between e-charging station and e-vehicle. The test device is designed for testing the functional behavior of charging stations and electric vehicles with a Type 2 connection socket (Mode 3 charging). For this purpose, the test device is connected between the charging station and the electric vehicle in order to log the communication between the two participants. In the event that the charging process does not start, the source of the error (charging station or electric vehicle) can be quickly located. The PROFITEST H+E TECH is suitable for use in development and service. Complete diagnosis of e-charging station and e-vehicle: Vehicle states Cable states Error states Evaluation of PWM signal Phases and rotating field Battery state Display of communication between charging station and electric vehicle in real time Signaling of states using easy-to-understand symbols Simple operation and diagnosis Battery-operated compact device, therefore also suitable for outdoor use. Status visualizations Visualizable vehicle states (CP) No vehicle present Vehicle present Vehicle ready for charging without ventilation Vehicle ready for charging with ventilation Cable type (PP) 20 A cable . Connection option for electric vehicles: OEM connector type IICompact case, ideal for service callsLarge display with switchable backlightUser interface language can be selected: D, GB, F, E, I, PTSupply via two 9 V block batteries / rechargeable batteries or power packUSB data interface for firmware updates. Diagnostic information Measurement parameters Setting phase L1, L2, L3 on / off Rotary field direction right / left Resulting charging current (by evaluating the duty cycle) A PWM signal frequency Hz (target = 1 kHz) Duty cycle (duty cycle for PWM) % Upper voltage 3, 6, 9, 12 V Lower voltage -12 V . 1 PROFITEST H+E TECH test device2 9 V block batteries1 12 V power supply1 operating manual
| Property | Value |
| Display: | digital |
| Insulation resistance measurement: | no |
| Surge arrester test: | no |
| Loop resistance/impedance measurement: | no |
| Internal network resistance measurement: | no |
| RCD/FI test: | yes |
| RCD/FI test with increasing fault current: | no |
| RCD/FI analysis function: | yes |
| Rotational field test: | yes |
| Low resistance measurement: | no |
| Earth measurement: | no |
| Selective earth measurement: | no |
| Earth loop measurement: | no |
| Specific Earthing measurement: | no |
| Measured value memory: | no |
| Interface: | yes |
| Printer connection: | no |
| Limit value display: | no |
| Resistances of insulating floors and walls: | no |
| Loop measurement without RCD/FI triggering: | yes |
| Determination of short-circuit current/overcurrent protection devices: | yes |
| Integrated printer: | no |
| Remote control of the test device: | no |
| Insulation resistance measurement with ramp function: | no |
| Curve shape for RCD/FI testing: | for residual current circuit breakers type A, F |
| Measuring leakage currents with adapter: | no |
| Low-resistance measurement with ramp function: | no |
| PRCD test type S, type K: | no |
| Checking e-charging stations, simulating vehicle status: | yes |
| Checking IMDs and RCMs: | no |
| Structured measured value storage: | no |
