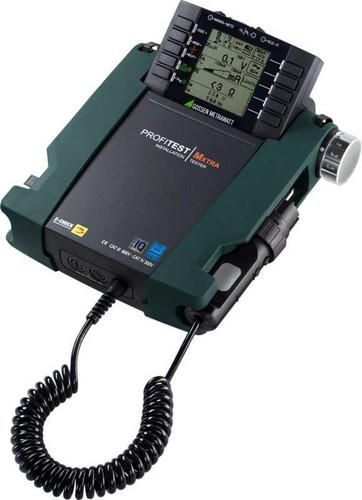

Gossen Metrawatt M535M PROFiTEST MXTRA IQ protective measures tester

Measuring and testing device for testing the effectiveness of protective measures on stationary electrical installations after completion, repair, extension and during a repeat test (DGUV Regulation 3)The PROFITEST MXTRA IQ offers all measuring and testing functions for testing the effectiveness of protective measures on stationary electrical installations - both with predefined and optionally with programmable test sequences that are required in accordance with the test standards according to IEC 60364-6 (DIN0100-600) and EN 50110-1 (DIN0105-100). Measurement category 300 V CAT IV / 600 V CAT III.PROFITEST - versatile and future-proofIntuitive operation. Efficient work. Testing in accordance with standards. Legally compliant logging. PROFITEST - saves time and moneyOnly one testing device for a wide variety of applications. All measurements without the hassle of replugging the measuring cables. Can be used internationally thanks to language selection. PROFITEST - even in 10 yearsFuture-proof thanks to firmware updates. 10-year service guarantee. DAkkS-validated by our own calibration center. User support and support for testing questions. PROFITEST - quick and easy to the reportCascadable future-proof software concept. Modern data management through customer and measurement data management. Creation of system structures from the system to the measuring points. Quick and easy to the legally compliant protocol in accordance with ZVEH. PROFITEST - safe measuring and testingEasy to use thanks to rotary switches. Predefined test sequences for structured testing. On-site assistance through help function with connection diagrams. Measurement category 600 V CAT III / 300 V CAT IV. Four-wire measurement technology - no compensation of the measuring cables required. Measurement and test sequence - simple creation of the system structure / measure, save / generate report. Preconfigured and self-programmable test sequences for quick testing of electrical systems. Storage concept for up to 50,000 data records. Testing of all current AC-sensitive RCDs, IMDs, RCMs and many more. Protection of the operator through PE detection when used by finger contact. Tests of the effectiveness of protective measures on stationary electrical systems in accordance with IEC 60364-6 (DIN0100-600), EN 50110-1 (DIN0105-100), EN 60204-1 (VDE 0113-1) and other country-specific standards. Testing of e-charging stations in accordance with EN 61851-1 (DIN0122-1) and earthing measurements. Wide-range measuring device for all AC and three-phase networks with voltages from 65 to 500 V and frequencies from 15.4 to 420 Hz. Loop and network impedance measurement with DC pre-magnetization. Measurement of insulation resistance with nominal voltage, with variable or increasing test voltage. Low-resistance measurement with automatic polarity reversal. Testing of residual current devices and special RCD circuit breakers (selective S, SRCDs, PRCDs, Schukomat, Sidos, type G/R, AC, A, F, B, B+, EV, MI). Testing of residual current (RCD) protective circuits in IT networks. Testing of RDC-DD according to IEC 62955 and RCMB according to DIN EN 62752. Testing of insulation monitoring devices (IMDs). Testing of residual current monitoring devices (RCMs). Measuring the earthing resistance (mains operation / battery operation). Leakage current measurement with PRO-AB adapter. Standard testing of e-charging stations according to IEC 61851 in conjunction with the Metraline PRO-TYP EM test adapter. Testing of PRCD types S and K using PROFITEST PRCD. Residual voltage measurement according to EN 60204. Automatic function of test sequences. USB interface. USB push-print function - sending the measured value after the measurement has been completed. Innovative and comprehensive operating concept. Quick access to measuring and test functions using rotary switches and softkeys. User-friendlyNo time-consuming re-plugging of the measuring leads
