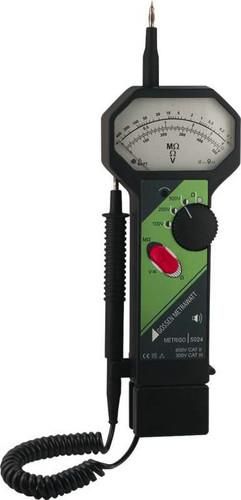

Analog insulation measuring device / low-resistance measuring device / voltmeter with buzzer. The analog insulation measuring device for quick two-hand operation in accordance with 0413 part 1/2/4 and voltmeter. Insulation measurements with measuring voltages of 100, 250, 500 V with analog display low-resistance measurements of protective conductor, potential conductor resistances, continuity buzzer as alarm function for incorrect or unreliable measurements flashing LED for the same purpose fluctuating pointer as the last resort of warning functions with bag. 1 insulation and resistance measuring device 1 carrying case 1 spare fuse 1 operating manual
| Property | Value |
| Display: | analog |
| Insulation resistance measuring range: | 0.1 to 400 MOhm |
| Interface: | no |
| Measured value memory: | no |
| Low resistance measurement: | yes |
| Analog bar display: | yes |
| Power supply: | Battery |
| LC display backlight: | yes |
| Nominal test voltage 100 V: | yes |
| Nominal test voltage 250 V: | yes |
| Nominal test voltage 500 V: | yes |
| Nominal test voltage 1000 V: | no |
| Nominal test voltage 2500 V: | no |
| Nominal test voltage 5000 V: | no |
| Nominal test voltage adjustable: | no |
| Voltage measurement: | yes |
| Surge arrester test: | no |
| Instantaneous value memory (Data Hold): | no |
| External voltage detection in OFF state: | no |
| Nominal test voltage adjustable with ramp function: | no |
