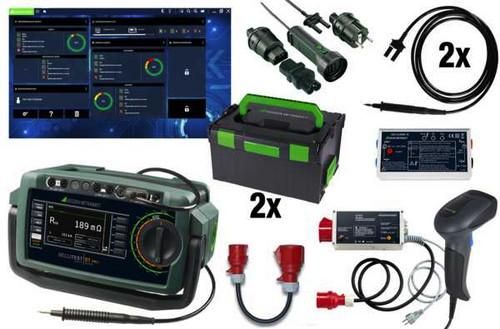

Test equipment set for testing the electrical safety of devices, particularly for three-phase devices including welding devices including IZYTRONIQ data processing software. Test equipment set with SECUTEST STPRO for testing electrical devices, medical devices and welding devices - both with predefined and optionally with programmable test sequences that are necessary in accordance with the latest test standards DIN EN 50678 (VDE 0701) DIN EN 50699 (VDE 0702), IEC/EN 62353 (VDE 0751) and IEC/EN 60974-4 (VDE 0544-4). The set is particularly suitable for testing tasks on three-phase devices including arc welding devices and contains all three-phase adapters up to 32A required for efficient testing as well as a peak value rectifier for measuring the open circuit voltage. Report creation in HTML on USB memory. Maintenance and repair of three-phase devices including arc welding equipment. Optional feature package DB-Comfort. 1x SECUTEST ST PRO 2x SORTIMO L-BOXX plastic system case 2x foam insert 1x AT16-DI adapter 1x SECULOAD-N test adapter 1x adapter cable CEE16A 1x IZYTRONIQ BUSINESS Professional
| Property | Value |
| Display: | graphical |
| Insulation resistance measuring range: | 0.01 to 300 MOhm |
| Protective conductor resistance measuring range: | 0 to 30 Ohm |
| Interface: | yes |
| Power measurement: | yes |
| Consumer current measurement: | yes |
| Limit value display: | yes |
| Automatic test sequence: | yes |
| Printer connection: | yes |
| Testing of extension cables: | yes |
| Connection for external measuring adapters: | yes |
| Protective conductor current: | yes |
| Touch current: | yes |
| Measured value memory: | yes |
| Integrated printer: | no |
| Active test: | yes |
| Alternative method: | yes |
| Differential current method: | yes |
| Direct method: | yes |
| Passive test: | yes |
| Voltage measurement: | yes |
| Suitable for use by a trained person: | yes |
| Printer connection: | USB-A |
