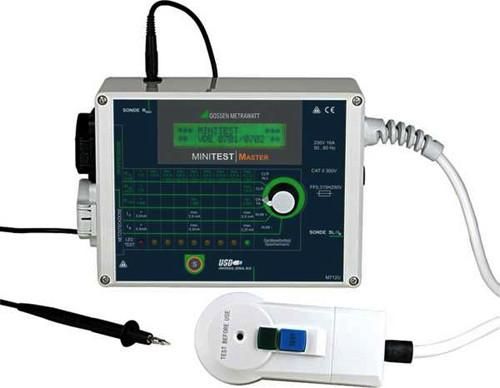

Test device for tests in accordance with DIN0701-0702 with data memory. The test device is intended for testing and measuring repaired or modified devices. Testing the electrical safety of electrical equipment in accordance with DIN0701-0702: 2008 by measuring protective conductor resistance, insulation resistance, protective conductor current - method, differential current, touch current - method, direct measurement. Additional range of functions: Master limit value exceedances indicated by LEDs, probe line protected by a fuse. Digital display for measured values, USB interface for data logging, residual current circuit breaker built in. Extensive safety features, memory for 2000 tests with 10 measured values each, RS232 interface for RFID or barcode reader, software MINITEST Master Soft (included). 1 test deviceAccessories see table in data sheet
| Property | Value |
| Display: | digital |
| Insulation resistance measuring range: | 0.01 to 9.99 MOhm |
| Protective conductor resistance measuring range: | 0.01 to 99.9 Ohm |
| Interface: | yes |
| Power measurement: | no |
| Consumer current measurement: | no |
| Limit value display: | yes |
| Automatic test sequence: | no |
| Printer connection: | no |
| Testing of extension cables: | no |
| Connection for external measuring adapters: | yes |
| Protective conductor current: | no |
| Touch current: | yes |
| Measured value memory: | yes |
| Printer integrated: | no |
| Active test: | no |
| Alternative method: | no |
| Differential current method: | yes |
| Direct method: | no |
| Passive test: | no |
| Voltage measurement: | no |
| Suitable for use by a trained person: | no |
