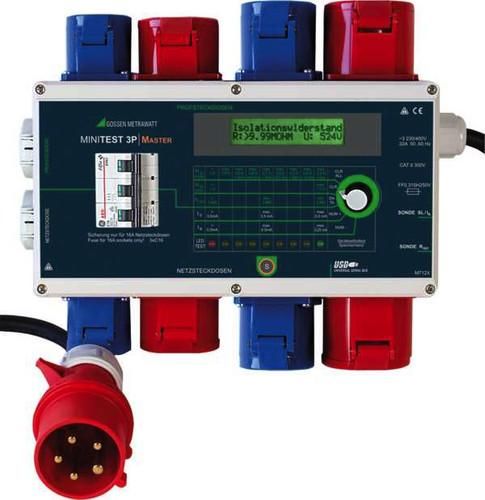

Test device for tests in accordance with DIN0701-0702 - with CEE sockets. The test device is intended for testing and measuring repaired or modified devices. Testing the electrical safety of electrical equipment: in accordance with DIN0701-0702: 2008 by measuring protective conductor resistance, insulation resistance, protective conductor current - method, differential current, touch current - method, direct measurement. Additional range of functions: 3P Master, limit value violations indicated by LEDs, probe line protected by a fuse, digital display for measured values, USB interface for data logging, extensive safety features, memory for 2000 tests with 10 measured values each, RS232 interface for RFID or barcode reader, test and power sockets CEE 16 A and CEE 32 A, software MINITEST Master Soft (included). 1 test deviceAccessories see table in data sheet
| Property | Value |
| Display: | digital |
| Insulation resistance measuring range: | 0.01 to 9.99 MOhm |
| Protective conductor resistance measuring range: | 0.01 to 99.9 Ohm |
| Interface: | yes |
| Power measurement: | no |
| Consumer current measurement: | no |
| Limit value display: | yes |
| Automatic test sequence: | no |
| Printer connection: | no |
| Testing of extension cables: | no |
| Connection for external measuring adapters: | yes |
| Protective conductor current: | no |
| Touch current: | yes |
| Measured value memory: | yes |
| Printer integrated: | no |
| Active test: | no |
| Alternative method: | no |
| Differential current method: | yes |
| Direct method: | no |
| Passive test: | no |
| Voltage measurement: | no |
| Suitable for use by a trained person: | no |
