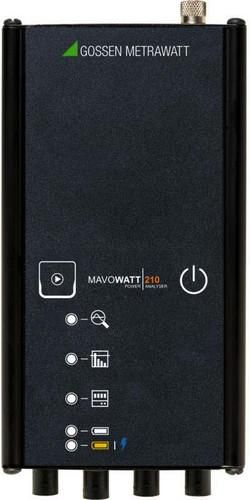

Gossen Metrawatt M840B MAVOWATT 210 3-phase energy and power disturbance analyzer

Data logger for energy and power quality. The MAVOWATT 210 records all relevant measured variables that are crucial for ensuring the quality of the energy supply. Since it is a bidirectional power meter, both the generator side and the consumer side are measured based on the power flow for use in alternative energy applications. Power quality problems such as voltage drops, voltage dips, excessive supply voltage and voltage interruptions can be detected with a resolution of 1/2 cycles according to IEC 61000-4-30. Harmonics (only Uthd and Ithd) are measured and recorded according to the methods of IEEE 519-2014 / IEC 61000-4-7. The integrated web server of the MAVOWATT 210 makes it easier to configure the device and enables the data to be checked in real time (remote control). The web server can be accessed via any commercially available end device via the network. For external data analysis via Dran-View, the data can be exported via the integrated USB port or downloaded via a web browser. With the Dran-View XP software, you can conveniently analyze, compare and contrast the recorded events afterwards and present them clearly in reports. Particularly small design Long battery life for a daily measurement Very low weight – 0.64 kg Power quality trigger thresholds can be freely programmed Energy flow recording – import & export. Easy to use thanks to the integrated web browser Guided configuration during settings at the measurement location Important basic variables relevant to standards are recorded Simple evaluation and documentation via the Dran-View XP software. Energy audits in accordance with DIN EN 16247-1 Energy flow recording Power control Important investigations into network quality Control measurements Meter recording Tenant electricity meters Alternative energy production & DER integration Determination of load profiles Investigation of performance factors Applications in the residential sector including energy consumption and PQ detection. Power/Energy Logger & PQ Fault/Event Detector 3 Voltage Channels - Direct Measurements up to 600Vrms, CATIII 4 Current Channels - 0.333Vrms Current Inputs. Compatible with various accessory options (see accessory lists) or all industry standard 0.333Vrms current transformers Measurement types: U, I, W (P), VA (S), VAR (Q), PF, demand measurement of various quantities, energy much more Detection and recording of trends of RMS voltage drops/sags, swells, current changes according to IEC 61000-4-30 in 1/2 cycle methods Uthd, Ithd measurements according to IEEE 519-2014/IEC 61000-4-7 Web browser interface for real-time measurements, setup and data transfer Free Dran-View XP software for analysis & reporting available for free download under “MyGMC” 7 hours battery life for long-term measurements Automatic wiring test: LEDs indicate wiring errors Ethernet, USB communication Modbus, Bacnet IP50 (in vertical position) 3 year guarantee. User-friendly plug and play solution - thanks to the pre-configured measurement campaigns, the customer can simply press START on site to measure. Modern data management With real-time data in numerical displays and the storage of the data on the MAVOWATT 210, it is possible to ensure comprehensive documentation. Unique storage concept Large (8 GB) internal data memory to ensure long-term recordings. Universal interface data exchange (USB) & Ethernet port Versatile use Whether before or after the installation of electrical consumers such as machines, frequency converters or wall boxes, the MAVOWATT 210 enables you to
