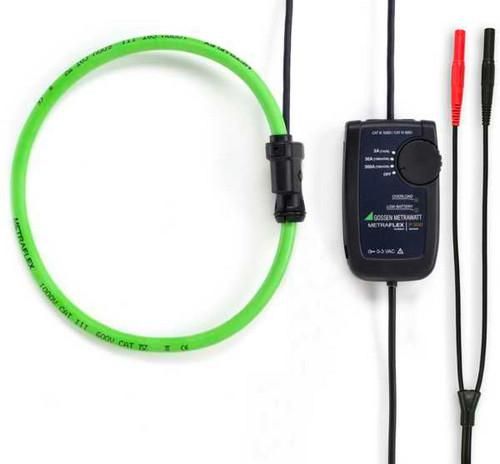

Flexible current sensor 3/30/300 A, 1V-10mV/A, loop length 450 mm. The flexible current sensor is used in conjunction with measuring devices up to 3 V AC measuring input. The sensor loop can be placed around one or more conductors of any design (insulated cables, busbars, pipes).For autonomous operation, the measuring amplifier is powered by internal batteries. Wide range of applications, 3 measuring ranges 3/30/300 A AC, but not for power measurement High bandwidth 20 Hz ... 4 kHz for harmonic analysis Accurate measurement even at low currents, due to large dynamic range and high sensor sensitivity Low position influence of the conductor and minimal external field influence Easy to use in confined spaces thanks to small sensor cross-section 9.9 mm and slim end cap 13.6 mm Safe handling even with protective gloves - opening the sensor and setting the measuring range with one hand Current sensor with protection class IP65, measuring amplifier with IP40 High safety for the user, measuring category 1000 V @CAT III, 600 V @ CAT IV and unlimited overload capacity.
| Feature | Value |
| Power measurement: | no |
| Current measuring range/AC: | 3 to 300 A |
| Clamp opening: | 150 mm |
| Leakage current measurement: | no |
| Harmonics measurement: | no |
| Measurement in cable with forward and return conductors: | no |
| Version as adapter for connecting to multimeter: | yes |
| Interface: | yes |
| Voltage measurement/AC: | no |
| Voltage measurement/DC: | no |
| Resistance measuring range: | no |
| Analog bar display: | no |
| Measuring range selection: | manual |
| Measuring circuit category: | CAT IV |
