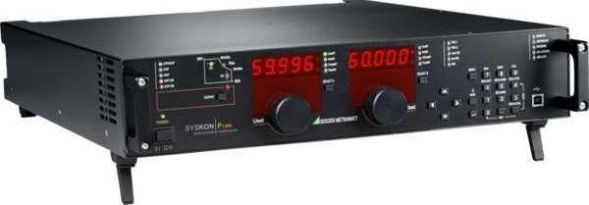

DC power supply 1500W, 60V, 60A programmable. The devices in the SYSKON series are fast, precise, analog and digital programmable DC power supplies that are ideal for automated test sequences. In addition to the wide range of programming capabilities, the device offers excellent output values in terms of speed, accuracy and residual ripple. The KONSTANTERs in the SYSKON P series cover the nominal powers of 500W, 800W, 1500 W, 3000 W, 4500 W with an output voltage of up to 60 V and a nominal current of up to 180A. The wide-range mains input with sinusoidal current consumption opens up the application possibilities in countries with low mains voltages. The devices offer excellent dynamic properties for setpoint changes and load jumps. The setpoints can be changed automatically in 1 ms increments. 1700 sequence stepsAuto-range outputReading in and out of all programmable parameters. DC power supplies for safety-relevant tests of electrical and electronic components in a field-suitable device Stable DC power output, programmable sequence sequences and read-in and read-out functions for the specified parameters ensure easy repeatability and multiplication of the test sequences Digital and analog interfaces enable integration into test fields with commercially available or customer-specific control software, own software available. Endurance tests, climate tests, stress tests in the application fields of electrical machinery, automotive, avionics, medical technology, semiconductors. Power output up to 1500W, 60V, 60A with auto-range characteristic curve 1700 sequence memory locations 15 basic setting memory locations Digital interfaces USB, RS232 (on board) and GPIB (optional) as well as analog interface Control software included Sense connections dynamic sink (continuous sink power 65W) DAkkS calibration certificate included in delivery Driver for LabView available. Very short setting times (2 ms) Very high setting resolution (1 mV, 1mA, 1ms) Digital documentation of measured values via connected computer. SYSKON DC power supply CD with documentation & software Power cable USB cable Mounting set for 19 inch installation Operating instructions D/GB DAkkS calibration certificate
| Property | Value |
| Installation height: | 88 mm |
| 1. Output voltage: | 0 to 60 V |
| Type of supply voltage: | DC |
| Max. Output current 1: | 60 A |
| Output voltage adjustable: | yes |
| Rated supply voltage at AC 50 Hz: | 0 to 60 V |
| Short-circuit proof: | yes |
| Stabilized: | yes |
| Suitable for safety functions: | yes |
| Direct mounting possible: | yes |
| Design of the electrical connection: | Screw/spring connection |
| Output voltage regulated: | yes |
| Power consumption: | 365 VA |
| Power output: | 1500 W |
| Suitable for series installation: | yes |
| Rail mounting possible: | yes |
| Wall mounting possible: | yes |
| Width: | 447 mm |
| Height: | 102 mm |
| Depth: | 501 mm |
