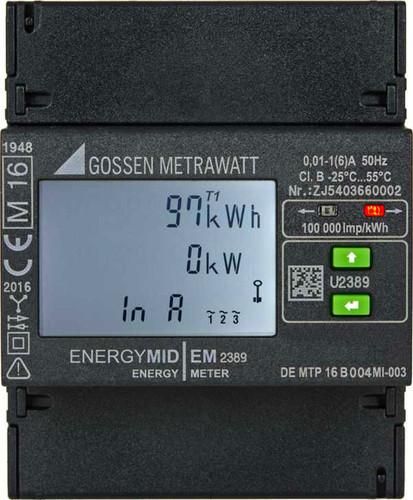

ENERGYMID EM2389 - Multifunctional energy meter for 4-wire networks, 100-110V / 400V with transformer connection. The ENERGYMID EM energy meters enable the legally compliant recording of your third-party quantities and the security of your EEG levy. The new ENERGYMID energy meter generation opens up completely new cost-saving potential for you. The extremely small design with integrated interface gives you more space in the distributor or control cabinet for other required functions. Thanks to a wide range of interfaces, the MID-certified ENERGYMID energy meters are your perfect solution for energy recording in industry, households, commerce and building technology - and all at a low price. . Multifunctional energy meter for 3-wire networks, 100-110V / 400V / 500V with transformer connection, ultra-compact design, 4 HP (72 mm) with integrated interface, 4 quadrant measurement: energy consumption and output, communication via M-Bus, LON, Modbus TCP / BACnet, Modbus RTU, pulse output, recording of THD for current and voltage as well as neutral conductor current IN up to 8 tariffs. MORE SPACE-SAVING Integrated interface for connection to recording and optimization systems Integrated illuminated display for reading parameters and settings Tamper protection with sealable cover and parameter lockFASTER INSTALLED Faster installation through error detection with color change on the display Easy error detection by monitoring the installation parameters such as rotary field direction or reversed polarity convertersMORE COST-EFFECTIVE Immediately suitable for billing purposes through initial calibration according to MID ex works Manufactured in Germany according to the strictest quality criteria 3 year guaranteeINTEGRATED Versatile connection Modbus TCP. The calibrated energy meter can be used to record and bill active energy in industry, households, commerce and building technology. The values are transmitted to recording, billing and optimization systems as well as building automation and control technology via pulse output or bus interfaces. Energy recording in industry for individual lines or machines. Measurement of renewable energy from photovoltaic and wind energy systems. Recording and billing of consumption at campsites, shopping centers, residential complexes, boat docks. Energy recording for hotels, conference centers and trade fairs. Internal cost distribution for timeshare apartments and sublet industrial buildings. Consumption billing in business centers. Installation of energy recording systems. Remote transmission of consumption values and cost billing. 36-month guarantee on material and manufacturing defects. ENERGYMID energy meter operating instructions
| Property | Value |
| Width in TE: | 4 |
| Calibrated: | yes |
| Meter type: | electronic |
| Display type: | digital |
| Accuracy class: | B |
| Current (Imax): | 6 A |
| Nominal voltage (Un) NL: | 230 V |
| Protection class (IP): | other |
| Frequency: | 50 Hz |
| Tariff version: | Multi-tariff |
| Energy type: | Active power |
| Current (In): | 6 A |
| Version: | Measuring transformer |
| Measurement type load profile: | yes |
| EDL40 signature: | no |
| With Locking code: | no |
| Nominal voltage (Un) LL: | 400 V |
| Suitable for: | Reference |
| Backstop: | no |
| Approval: | Measuring Instruments Directive |
| Pulse output: | without |
| Interface design: | Modbus |
