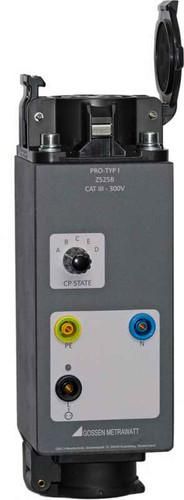

Test adapter for e-charging stations (1-phase, type 1) for PROFITEST. 1-phase test adapter with inlet plug type 1 for testing the effectiveness of protective measures at e-charging stations with the Profitest Master, simulation of fictitiously connected electric vehicles and simulation of the current carrying capacity of charging sets in accordance with IEC 61851-1. . 1-phase test adapter with type 1 plug for testing the effectiveness of protective measures at e-charging stations with the PROFITEST Master, simulation of fictitiously connected electric vehicles and simulation of the current carrying capacity of charging sets in accordance with IEC 61851-1 Vehicle simulation (CP) Vehicle states A to E are set using a rotary switch Cable simulation (PP) using hard-wired cable coding Error simulation Simulation of a short circuit between CP and PE using a rotary switch Display of the phase voltages via LEDs For vehicle simulation (CP): According to IEC 61851, states A, B, C, D and E can be simulated. The different vehicle states are set using the rotary switch. State A - no vehicle connected State B - vehicle connected but not ready to charge State C - vehicle connected and ready to charge, ventilation of the charging area not required State D - vehicle connected and ready to charge, ventilation of the charging area required State E - Error: short circuit CP-PE via internal diode. 1 test adapter PRO-TYP I 1 operating manual
