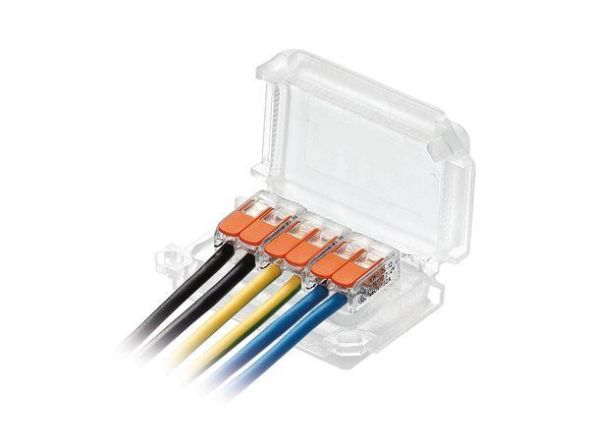

With Raytech connectors, Grothe delivers an extremely quick-to-use, user-friendly and indefinitely durable connection system for power cables. The gel-filled connection sleeves revolutionize the connection of live cables and offer protection, insulation and sealing even in adverse environments. The connection sleeves enable an absolutely secure connection of all types of power cables, which is suitable for use in the ground and even under water (protection classes IP68 / IPX8 / IP69K).Product features:Gel-filled micro connection sleeves with 3 wire entries also for use under water (IPX8, including COMPACT connection terminals).Versatile - ready to use - accessible again Small, compact and durable Filled with non-toxic gel with unlimited storage Can be loaded with voltage immediately For straight and branched connections For rigid and flexible insulated single wires up to 4 mm Halogen-free UV-resistantTechnical data:Includes three COMPACT connection terminals 2 x 4 mm per Happy Joint gel boxPackaging content 1 piece per blister Color transparent Dimensions 53 x 39 x 24 mmInstallation instructions:Note:
| Property | Value |
| Nominal conductor cross-section of main cable: | 1 to 4 mm² |
| Nominal conductor cross-section of branch cable: | 1 to 4 mm² |
| Number of conductors: | 6 |
| Design: | Gel |
| Type: | Through branch |
| Mining approval: | no |
| Suitable for: | other |
| Halogen-free: | yes |
| Connection accessories included: | Press/crimp connectors |
