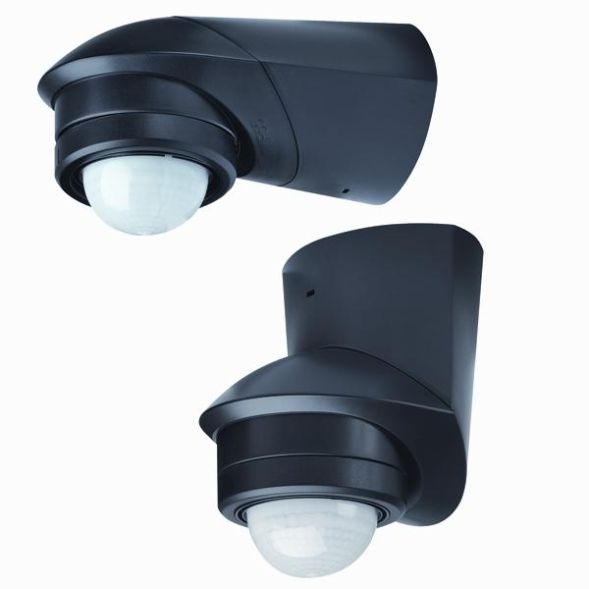

The McGuard family now consists of 7 different model series, each one specializing in its own field and functionally coordinated with one another. The devices combine the reliability you expect from Grothe in everyday use with a high level of ease of installation and ease of use.Product features:McGuard professional BM240swPassive infrared motion detectorCeiling, wall and corner installation including universal bracketResponse sensitivity. continuously adjustable creep protection radius 1mTechnical data:Monitoring range 240° at 12m Switch-on time from 3 seconds to 12 minutesSwitching capacity: Incandescent lamps max. 1000W Energy saving lamps max. 500VA Fluorescent lamps max. 250WLED lamps max. 150W Supply voltage: 230V AC, 50Hz Effective power: 0.9W Protection class: IP55 (suitable for outdoor use) Color: blackInstallation instructions:Note:
| Property | Value |
| Depth: | 120 mm |
| Width: | 84 mm |
| Height: | 78 mm |
| Design: | Motion detector |
| Color: | black |
| Rated voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Response brightness: | 2 lx |
| Protection class (IP): | IP55 |
| Max. switching capacity: | 1000 W |
| Voltage type: | AC |
| Max. range to one side: | 6 m |
| Scan angle: | 240 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 3 s |
| Max. Duty cycle: | 20 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -10 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. range, frontal: | 12 m |
| Max. Inrush current: | 10 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 12 m |
| Horizontal detection angle: | 240 ° |
| Frequency: | 50 Hz |
| Sensor swivel range, horizontal: | 160 ° |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | yes |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | no |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Suitable for ceiling mounting: | no |
| Connection type: | Screw terminal |
| Antibacterial treatment: | no |
