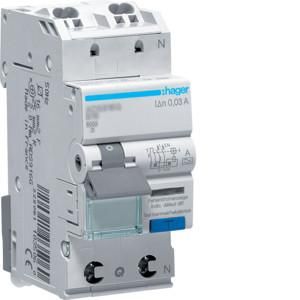

Residual current circuit breaker 1P+N 6kA B characteristic 10A 30mA type A QC. Residual current circuit breaker with QuickConnect terminal according to DIN EN 60898-1,0641-11, on the outgoing circuit up to 20 A and on the incoming circuit up to 63 A. Contact protection DIN0106 Part 100, blue test button and residual current display. Easy individual removal from the phase busbar system. With symbol. Suitable for the subsequent installation of additional equipment. Labeling option directly on the device.
| Property | Value |
| Triggering characteristic: | B |
| Rated current: | 10 A |
| Rated residual current: | 0.03 A |
| Rated voltage: | 240 V |
| Frequency: | 50 Hz |
| Number of poles (total): | 2 |
| Width in pitch units: | 2 |
| Residual current type: | A |
| Installation depth: | 68 mm |
| Rated breaking capacity according to IEC 60947-2: | 6 kA |
| Surge current strength: | 0.25 kA |
| Protection class (IP): | IP2X |
| Energy limitation class: | 3 |
| Overvoltage category: | 3 |
| Pollution degree: | 2 |
| Switching neutral conductor: | yes |
| Number of protected poles: | 1 |
| Type of voltage: | AC |
| False tripping protection: | no |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Rated short-circuit breaking capacity Icn according to EN 61009-1: | 6 kA |
| Shutdown characteristics: | undelayed |
| With locking device: | yes |
| Ambient temperature during operation: | -25 to 40 °C |
Features
Shutdown characteristics
Without delay
Rated short-circuit breaking capacity Icn according to EN 61009-1
6 kA
Manufacturer
HAN
ADS910D
GTIN
3250611068129
Number of protected poles
1
Trigger characteristics
B
Rated breaking capacity according to IEC 60947-2
6kA
Rated residual current
0.03A
Rated insulation voltage Ui
500V
Rated voltage
240V
Rated impulse withstand voltage Uimp
4kV
Rated current
10A
Width in pitch units
2
Installation depth
68 mm
Energy limitation class
3
False trigger protection
No
Residual current type
A
Frequency
50Hz
With locking device
Yes
Switching neutral conductor
Yes
Number of poles (total)
2
IP protection)
IP2X
Voltage type
AC
Surge current strength
0.25kA
Ambient temperature during operation
-25 to 40 °C
Degree of contamination
2
Overvoltage category
3
