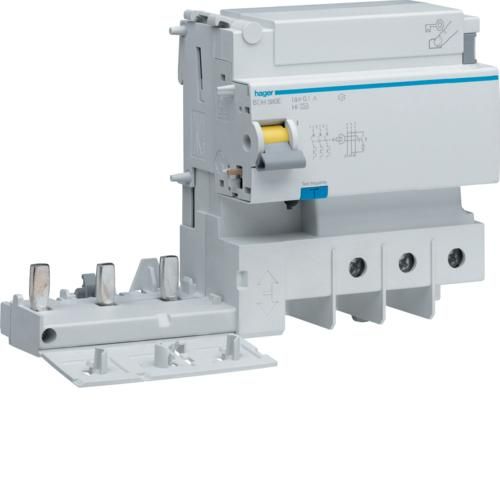

Residual current block 3-pole 125A 30mA Type HI. FI block type A HI (pulse current sensitive and high immunity) according to DIN EN 61009-1 (VDE 0664-20) can be attached to circuit breakers. With clamping force reinforcement and top hat rail clip with two holding positions. Device can be sealed.
| Property | Value |
| Nominal voltage: | 415 V |
| Delay time adjustable: | no |
| Rated residual current adjustable: | no |
| Rated current: | 125 A |
| Residual current type: | other |
| Number of poles: | 3 |
| Rated residual current: | 0.03 A |
| Frequency: | 50 Hz |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 6 kV |
| Connectable conductor cross-section, single-wire: | 10 to 70 mm² |
| Connectable conductor cross-section, stranded: | 10 to 50 mm² |
| False tripping protection: | yes |
| Protection class (IP): | IP20 |
| Degree of pollution: | 3 |
| Ambient temperature during operation: | -25 to 60 °C |
Features
Manufacturer
HAN
BDH380E
GTIN
3250611340041
Connectable conductor cross-section solid
10 to 70 mm²
Connectable conductor cross-section stranded
10 to 50 mm²
Rated residual current
0.03A
Rated insulation voltage Ui
500V
Rated impulse withstand voltage Uimp
6kV
False trigger protection
Yes
Residual current type
Other
Frequency
50Hz
Nominal voltage
415V
Rated current
125A
Number of poles
3
IP protection)
IP20
Ambient temperature during operation
-25 to 60 °C
Degree of contamination
3
