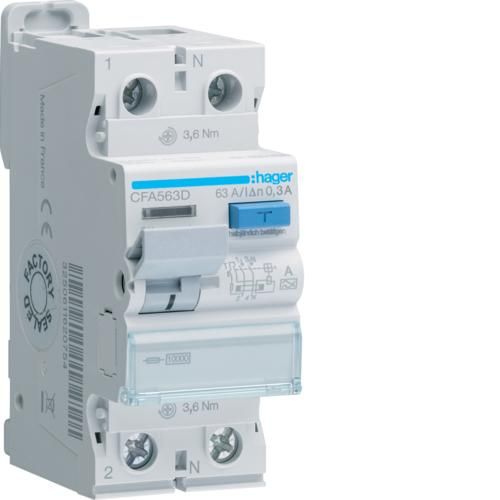

Residual current circuit breaker 2-pole 10kA 63A 300mA type A. Residual current circuit breaker (FI) according to EN 61008-1, DIN EN 61008-2-1,0664 part 10 + 11, contact protection IP2x according to DIN0106 part 100. Suitable for the subsequent installation of additional equipment (installation without tools). Connection terminals with wire insertion protection, bi-connect terminals at the bottom, external blue test button. All products with symbol. Labeling option directly on the device.
| Property | Value |
| Rated voltage: | 230 V |
| Rated current: | 63 A |
| Rated residual current: | 0.3 mA |
| Mounting type: | DIN rail |
| Protection class (IP): | IP20 |
| Frequency: | 50/60 Hz |
| Number of poles: | 2 |
| Width in modular spacing: | 2 |
| Selective type: | no |
| Fault current type: | A |
| Additional equipment possible: | yes |
| Installation depth: | 70 mm |
| Short-circuit strength (Icw): | 10 kA |
| Surge current strength: | 3 kA |
| Short-time delayed Type: | no |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| With locking device: | yes |
| Ambient temperature during operation: | -25 to 70 °C |
| Pollution degree: | 2 |
| Connectable conductor cross-section, stranded: | 1 to 16 mm² |
| Connectable conductor cross-section Single-wire: | 1 to 25 mm² |
Features
Manufacturer
HAN
CFA563D
GTIN
3250611620778
Connectable conductor cross-section solid
1 to 25 mm²
Connectable conductor cross-section stranded
1 to 16 mm²
Rated residual current
0.3mA
Rated insulation voltage Ui
500V
Rated voltage
230V
Rated impulse withstand voltage Uimp
4kV
Rated current
63 A
Width in pitch units
2
Installation depth
70 mm
Residual current type
A
Frequency
50/60Hz
Short circuit strength (Icw)
10kA
Short-time delayed type
No
With locking device
Yes
Mounting type
DIN rail
Number of poles
2
IP protection)
IP20
Selective type
No
Surge current strength
3kA
Ambient temperature during operation
-25 to 70 °C
Degree of contamination
2
Additional equipment possible
Yes
