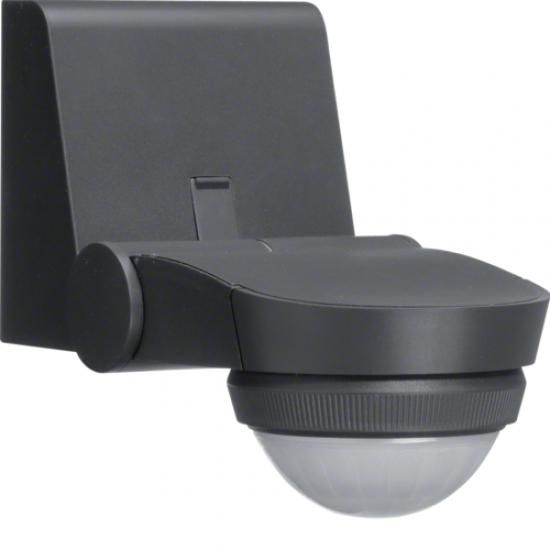

Outdoor motion detector 360° IP55, surface-mounted, anthracite. Outdoor motion detector for controlling lighting in commercial buildings and residential houses by detecting moving people. Detection range of 360° with creep protection for local detection and a diameter of max. 12m at a recommended installation height of 2.5m. Vertical lens adjustment of + 90°/-30° possible. Detection using Fresnel lenses. The time delay and brightness value can be set directly on the device or using the optional EE 806 remote control; a pulse can also be generated. Sensitivity can be set from 20% to 100%. Additional potential-free closing contact available. Can be mounted on the wall and ceiling. Possible in corners using the optional mounting adapter EE855.
| Property | Value |
| Height: | 139 mm |
| Design: | Motion detector |
| Material: | Plastic |
| Mounting type: | Surface-mounted |
| Protection class (IP): | IP55 |
| Max. Range to one side: | 6 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 5 s |
| Max. duty cycle: | 15 min |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. Frontal range: | 12 m |
| Optimal installation height: | 4 m |
| Surface finish: | matt |
| Material quality: | Thermoplastic |
| Horizontal detection angle: | 360 ° |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Teach function for response brightness: | yes |
| With remote control: | no |
| With DALI interface: | no |
| Extension input: | yes |
| Antibacterial treatment: | no |
