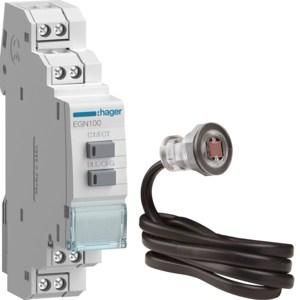

Digital multifunction timer with Bluetooth, 1-channel including built-in sensor. Set consisting of digital multifunction timer 1-channel and brightness built-in sensor. Digital multifunction timer 1-channel with integrated Bluetooth function and app programming for time, brightness and location-dependent control. Can be used as a day, week, year and astro clock, also with integrated twilight switch function. Exception control via wired external switch/button or KNX radio switch/button. Programming via app by activating, deactivating and resetting Bluetooth on the device: Time and date (factory set), automatic summer/winter time change, public holiday and school holiday times can be selected depending on location, access can be blocked via app or key combination, temporary and permanent exception control on/off/pulse. Programs can be created in the app, adopted from templates already used or exceptions can be activated. A portal can optionally be used to pass on and externally save the program. Reduction of contact load through zero-crossing switching. Programming without mains voltage possible via integrated power reserve (approx. 10 years). Built-in sensor with measuring range 5 to 2000 lx, cable length 1 m, operating temperature -30° to 60°C - cable length between connectable devices and brightness sensor max. 100 m. Note: Communication protocol from version Bluetooth 4.2 and KNX radio RF quicklink.
| Property | Value |
| Width in division units: | 1 |
| Number of channels: | 1 |
| Protection class (IP): | IP20 |
| Supply voltage: | 230 V |
| Power reserve in Years: | 10 |
| Weekly program: | yes |
| Annual program: | yes |
| Mounting type: | DIN rail |
| Type of supply voltage: | AC |
| Frequency of supply voltage: | 50 to 60 Hz |
| Power reserve in hours: | 87600 |
| Accuracy per day: | 0.25 s |
| Text guidance in the display: | no |
| 24 h program: | yes |
| 60 min program: | yes |
| Automatic summer/winter time change: | yes |
| Shortest switching time channel 1: | 1 min |
| Holiday program: | no |
| Pulse program: | yes |
| Cycle program: | yes |
| Astro program: | yes |
| External button input: | no |
| Random program: | no |
| Operating hours counter: | no |
| Mains synchronous: | yes |
| Quartz controlled: | yes |
| Radio controlled: | no |
| Shortest switching time channel 2: | 1 min |
| Manual operation: | yes |
| Number of memory locations: | 100 |
| Switching preselection: | yes |
| Rated switching current at 250 V AC: | 10 A |
| Potential-free switching contact: | no |
| External programming: | yes |
| Radio-controlled (DCF77): | no |
| GPS: | no |
| With memory card: | no |
