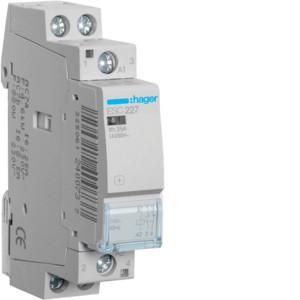

Installation contactors 25A 1S+1Ö 230V. Contactor in compact design according to EN 61095 and DIN0637-3 as well as touch protection according to DIN0106 Part 100. Contact position indication through display window, integrated labeling field and suitable for subsequent attachment of additional equipment. Notes: If several devices are installed directly, a spacer (1/2 PLE) must be installed next to every second device.
| Property | Value |
| Type of operating voltage: | AC |
| Protection class (IP): | IP2X |
| Max. incandescent lamp load: | 1900 W |
| Rated operating current: | 25 A |
| Rated operating voltage: | 230 V |
| Max. fluorescent lamp load (parallel compensated): | 810 VA |
| Max. fluorescent lamp load (duo circuit): | 1990 VA |
| Max. Fluorescent lamp load: | 950 VA |
| Additional equipment possible: | yes |
| Slider for manual switching: | no |
| Type of actuating voltage: | AC |
| Installation depth: | 60 mm |
| Rated actuating voltage: | 230 V |
| Usage category: | 7 |
| Number of contacts as normally open: | 1 |
| Number of contacts as opener: | 1 |
Features
Rated operating current
25 A
Max. fluorescent lamp load
950 VA
Manufacturer
HAN
ESC227
GTIN
3250612400621
Number of contacts as normally open
1
Number of contacts as opener
1
Rated operating voltage
230V
Installation depth
60 mm
IP protection)
IP2X
Additional equipment possible
Yes
